Stainless Swage Fittings

Pelican Hook

316 Stainless Steel

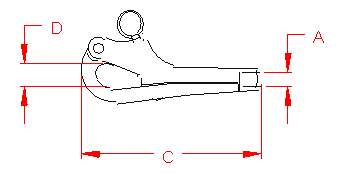

ITEM A B C D WT
S0162-0007 1/4" NA 2.96" 0.50" 0.25
S0162-0008 5/16" NA 3.87" 0.64" 0.35
S0162-0013 1/2" NA 6.00" 1.00" 0.93
WITH SWAGE STUD
S0162-A007 1/4" 1/8" 2.96" 0.50" 0.30
S0162-A008 5/16" 3/16" 3.87" 0.64" 0.40
S0162-A013 1/2" 1/4" 6.00" 1.00" 1.22
