How PM&I Can Help Prevent Delays

Stainless Swage Fittings

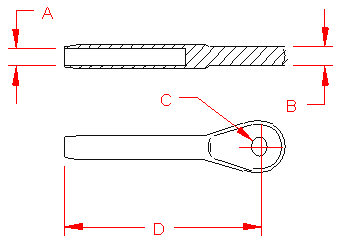

Swage Marine Eye

316 Stainless Steel



  A
Wire
B C D Before
Swage
After
Swage
Weight
S0735-0001 1/16" 0.12" 0.22" 1.93" 0.216" 0.189" 0.02 lb
S0735-0002 3/32" 0.12" 0.22" 1.93" 0.216" 0.189" 0.03 lb
S0735-0003 1/8" 0.21" 0.25" 2.50" 0.250" 0.219" 0.05 lb
S0735-0004 5/32" 0.25" 0.31" 2.88" 0.297" 0.250" 0.09 lb
S0735-0005 3/16" 0.31" 0.38" 3.25" 0.359" 0.313" 0.15 lb
S0735-0006 7/32" 0.24" 0.41" 3.35" 0.425" 0.370" 0.20 lb
S0735-0007 1/4" 0.37" 0.50" 4.00" 0.494" 0.438" 0.30 lb
S0735-0008 9/32" 0.35" 0.51" 4.10" 0.559" 0.496" 0.40 lb
S0735-0009 5/16" 0.50" 0.63" 4.75" 0.635" 0.563" 0.60 lb
S0735-0010 3/8" 0.62" 0.70" 5.75" 0.703" 0.625" 0.80 lb
S0735-0013 1/2" 0.75" 0.76" 7.50" 0.844" 0.750" 1.70 lb
