Stainless Chain

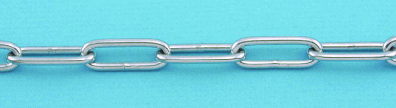

Long Link Chain

304L Stainless Steel

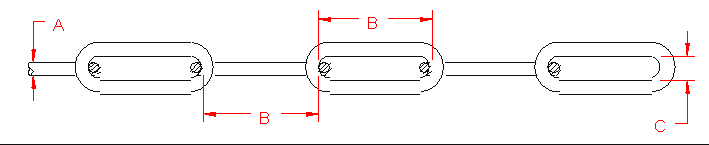

ITEM SIZE A B C BL WT
S0606-0001 5/64" 0.08" 0.48" 0.14" 720 0.06
S0606-0002 3/32-7/64" 0.10" 0.69" 0.16" 1,200 0.10
S0606-0003 1/8" 0.12" 1.03" 0.20" 1,520 0.11
S0606-0004 5/32" 0.15" 1.26" 0.35" 2,000 0.18
S0606-0005 3/16" 0.20" 1.42" 0.39" 3,600 0.28
S0606-0006 1/4" 0.24" 1.62" 0.47" 4,800 0.42
NOTE: LONG LINK CHAIN IS THE LEAST EXPENSIVE STAINLESS STEEL CHAIN. THE LINKS ON AVERAGE ARE 1.5 TIMES LONGER THAN STANDARD CHAIN LINKS. THIS CHAIN COMPLIES WITH ALL REQUIREMENTS OF DIN 5685-C.
