Stainless Chain

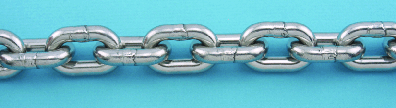

Stainless Anchor Chain

316L Stainless Steel

Stainless Anchor Chain

Stainless Anchor Chain

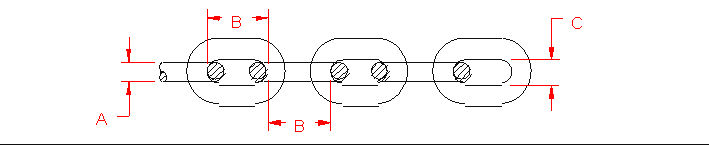

ITEM SIZE A B C BL WT
S0601-0007 1/4" 0.28" 0.87" 0.36" 8,000 0.76
S0601-0008 5/16" 0.32" 0.95" 0.41" 9,600 0.94
S0601-0010 3/8" 0.39" 1.10" 0.54" 15,000 1.60
S0601-0013 1/2" 0.51" 1.38" 0.74" 26,000 2.74

NOTE: THIS CALIBRATED CHAIN HAS DIMENSIONS OF "BBB" CHAIN AND FITS MANY STANDARD WINDLASSES. ALSO SEE THE S0604 SERIES FOR OTHER WINDLASS CHAIN.
THIS CHAIN COMPLIES WITH ALL REQUIREMENTS OF DIN 766.
