Stainless Chain

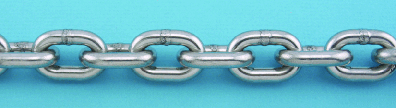

Stainless Standard Chain

316L Stainless Steel

Stainless Standard Chain

Stainless Standard Chain

ITEM SIZE A B C BL WT
S0604-0007 9/32" 0.28" 0.84" 0.40" 8,000 0.39
S0604-0008 5/16" 0.32" 1.03" 0.49" 9,600 0.92
S0604-0010 3/8" 0.39" 1.33" 0.57" 14,200 1.60
S0604-0013 1/2" 0.51" 1.59" 0.76" 26,000 2.10

NOTE: STANDARD GRADE S4 CHAIN IS MADE TO "G4" DIMENSIONS. IT FITS MANY STANDARD U.S. WINDLASSES AND INDUSTRIAL APPLICATIONS. THIS CHAIN COMPLIES FULLY WITH ALL REQUIREMENTS OF THE U.S. NATIONAL ASSOCIATION OF CHAIN MANUFACTURERS' (NACM'S) SPECIFICATIONS.
