Stainless Chain

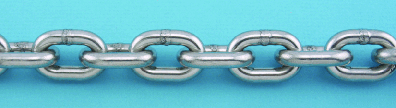

Lifting Chain

316L Stainless Steel



ITEM SIZE A B C BL WT
S0603-0005 3/16" 0.19" 0.58" 0.25" 4,400 0.36
S0603-0007 9/32" 0.28" 0.85" 0.38" 8,800 0.97
S0603-0008 5/16" 0.32" 0.95" 0.45" 10,800 0.98
S0603-0010 3/8" 0.39" 1.18" 0.55" 17,600 1.41
S0603-0013 1/2" 0.51" 1.55" 0.75" 29,200 2.60
NOTE: CALIBRATED GRADE 50 LIFTING CHAIN, MADE TO GRADE 80 DIMENSIONS. NEVER EXCEED WORKING LOAD LIMIT. WORKING LOADS ARE BASED ON GRADUAL PULL AND NOT SHOCK LOADS. MAKE SURE THAT ALL COMPONENTS IN YOUR ASSEMBLY ARE OVERHEAD LIFTING RATED AND HAVE THE SAME WORKING LOADS.
