How PM&I Can Help Prevent Delays

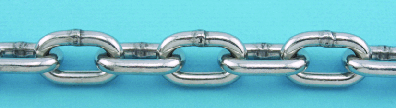

Stainless Chain

NACM Standard Chain

316L Stainless Steel



ITEM SIZE A B C BL WT
S0602-0004 5/32" 0.16" 0.77" 0.28" 2,000 0.23
S0602-0005 3/16" 0.20" 0.92" 0.34" 3,720 0.32
S0602-0007 1/4" 0.25" 1.00" 0.43" 6,280 0.57
S0602-0008 5/16" 0.32" 1.03" 0.49" 9,600 0.92
S0602-0010 3/8" 0.39" 1.22" 0.61" 14,200 1.50
S0602-0012 1/2" (7/16) 0.47" 1.50" 0.78" 21,600 2.00
S0602-0016 5/8" 0.63" 1.91" 0.90" 39,200 3.31
S0602-0020 3/4" 0.75" 2.75" 1.17" 60,000 5.00
S0602-0025 1" 1.00" 3.53" 1.61" 73,000 9.00
NOTE: MOST ECONOMIC AND COMMONLY USED CHAIN FOR INDUSTRIAL AND MARINE APPLICATIONS. THIS CHAIN COMPLIES FULLY WITH ALL REQUIREMENTS OF THE U.S. NATIONAL ASSOCIATION OF CHAIN MANUFACTURERS' (NACM'S) SPECIFICATIONS.
