Extruded Rubber Marine Fender

WO Series - Wing Type with O Bore

Pier Fender, Dock Fender, Boat Fender, Industrial Fender

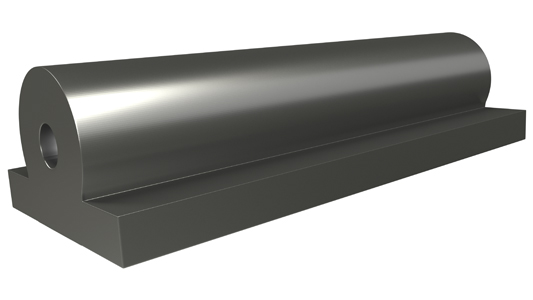

 wing with o bore marine rubber fenders

Load Curves - Wing with O Bore Marine Rubber Fender


Cross Section Sizes Per Chart Below

Cut To Length as Desired

Maximum Length: 20 Feet in Most Cases

Pre Drilled Mounting Holes if Desired

Pre Curved to Match Radius if Desired

High Quality Black or Non Marking Grey EPDM

Standard Hardness of 75 Durometer

Custom Materials and Cross Sections Available


Purchase ONLINE Select Marine Fenders



Information Required to Quote Extruded Marine Rubber Fenders



Download Marine Extruded Rubber Fender Catalog



Marine Extruded Rubber Fender Compound Specifications



How to Size Marine Extruded Rubber Fenders



Extruded Rubber Fender Profiles



Extruded Marine Fender Tolerance Table

wing with o bore marine rubber fenders  Wing with O Bore Marine Rubber Fender


Part

Width

Diameter

Bore

Thickness Base

Number

W

D

B

TB

WO-4-2.5-1

4

2 1/2

1

1/2

WO-5-2.5-1

5

2 1/2

1

1/2

WO-6-3-1

6

3

1

3/4

WO-6.5-4-2

6 1/2

4

2

1

WO-6.5-4-1

6 1/2

4

1

1

WO-9-6-3

9

6

3

1 1/2

WO-9-6-2

9

6

2

1 1/2

WO-9.5-6-2

9 1/2

6

2

1 1/2

WO-12-8-4

12

8

4

2

WO-16-10-4

16

10

4

2 1/2

WO-18-12-6

18

12

6

3

All Measurements in Inches

Custom and Modified Cross Sections Available
