Extruded Rubber Marine Fender

DD Series - D Shape with D Bore

Pier Fender, Dock Fender, Boat Fender, Industrial Fender
d shape with d bore marine rubber fenders

Load Curves - D with D Bore Marine Rubber Fenders


Cross Section Sizes Per Chart Below

Cut To Length as Desired

Maximum Length: 20 Feet in Most Cases

Pre Drilled Mounting Holes if Desired

Pre Curved to Match Radius if Desired

High Quality Black or Non Marking Grey EPDM

Standard Hardness of 75 Durometer

Custom Materials and Cross Sections Available


Purchase ONLINE Select Marine Fenders



Information Required to Quote Extruded Marine Rubber Fenders



Download Marine Extruded Rubber Fender Catalog



Marine Extruded Rubber Fender Compound Specifications



How to Size Marine Extruded Rubber Fenders



Extruded Rubber Fender Profiles



Extruded Marine Fender Tolerance Table

D wtih D Bore Rubber Marine Fenders  D shape with D bore Extruded Marine Rubber Fender

Purchase ONLINE Small Quantities of 4 x 4 D with 2 x 2 D Bore Black EPDM


Part

Width

Height

Bore

Number

W

H

B
DD-2-2-11 IN STOCK 2 2 1 x 1

DD-4-4-22 IN STOCK

4

4

2 x 2

DD-6-6-33 IN STOCK

6

6

3 x 3

DD-8-8-44 IN STOCK

8

8

4 x 4

DD-10-10-55 IN STOCK

10

10

5 x 5

DD-12-12-66 IN STOCK

12

12

6 x 6

DD-14-14-77

14

14

7 x 7

DD-16-16-88

16

16

8 x 8

DD-18-18-99

18

18

9 x 9

DD-20-20-1010

20

20

10 x 10

All Measurements in Inches

Custom and Modified Cross Sections Available

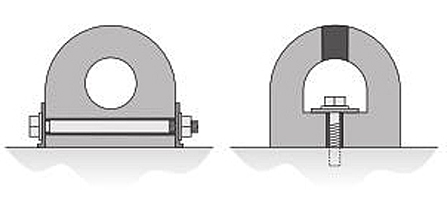

Common Installation Methods:
D shape marine extruded rubber fender
