Extruded Rubber Marine Fender

DO Series - D Shape with O Bore

Pier Fender, Dock Fender, Boat Fender, Industrial Fender

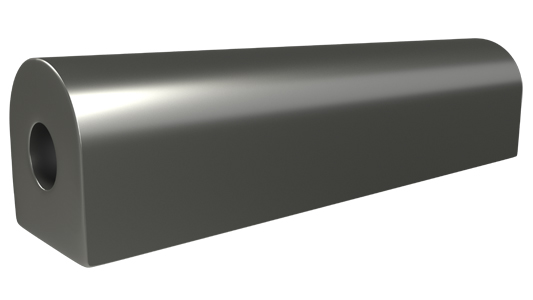

d shape with d bore marine rubber fenders

Load Curves D with O Bore Marine Rubber Fender

Cross Section Sizes Per Chart Below

Cut To Length as Desired

Maximum Length: 20 Feet in Most Cases

Pre Drilled Mounting Holes if Desired

Pre Curved to Match Radius if Desired

High Quality Black or Non Marking Grey EPDM

Standard Hardness of 75 Durometer

Custom Materials and Cross Sections Available

Purchase ONLINE Select Marine Fenders

Information Required to Quote Extruded Marine Rubber Fenders

Download Marine Extruded Rubber Fender Catalog

Marine Extruded Rubber Fender Compound Specifications

How to Size Marine Extruded Rubber Fenders

Extruded Rubber Fender Profiles

Extruded Marine Fender Tolerance Table

Rubber Marine Fenders Extruded

D Shape with o Bore Extruded Marine Rubber Fender

Part	Width	Height	Bore
Number	W	H	B
DO-4-4-2	4	4	2
DO-5-6-2.5	5	6	2 1/2
DO-6-6-3	6	6	3
DO-8-8-3	8	8	3
DO-8-10-3	8	10	3
DO-9-10-3	9	10	3
DO-10-10-3	10	10	3
DO-10-10-4	10	10	4
DO-12-12-4	12	12	4
DO-12-12-5	12	12	5
DO-12-14-5	12	14	5
DO-12-14-4	12	14	4
DO-14-14-6	14	14	6
DO-14-12-6	14	12	6
DO-13-12-6	13	12	6
DO-16-16-8	16	16	8
DO-18-18-9	18	18	9
DO-20-20-10	20	20	10
DO-22-22-11	22	22	11

All Measurements in Inches

Custom and Modified Cross Sections Available

Common Mounting Methods:

D shape marine extruded rubber fender
