How PM&I Can Help Prevent Delays

Marine Propeller Shaft Dimensions

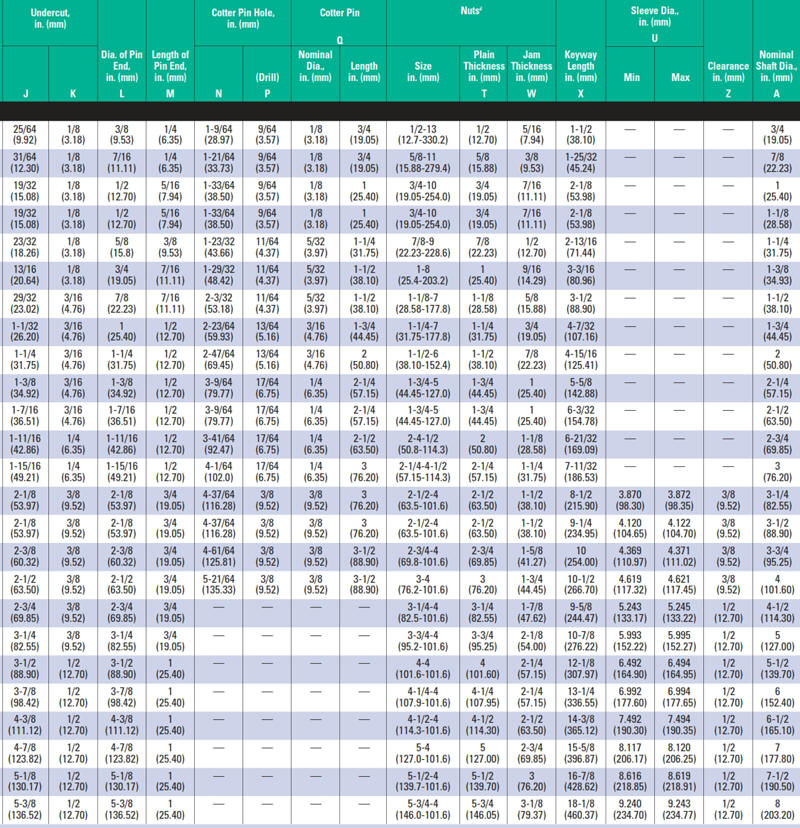

SAE Specification J755

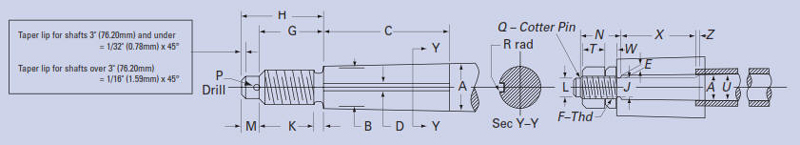

marine propeller shaft aqualoy 17 drawing




  sae specification J755




  sae specification j755
