How PM&I Can Help Prevent Delays

Aqualoy 19 Propeller Shaft

Marine Propeller Shafts

aqualoy 19 propeller shaft



Up to 8 Inches Diameter and Larger
Up to 32 Feet Long

Raw Shaft Material (specify diameter and length)
Finished Machined Shaft (provide drawing)

Nitrogen Strengthened

Applications:
Sportfishermen, Pleasure Craft and
Workboats That Need Better Corrosion Resistance

To avoid galvanic corrosion in salt, fresh or brackish water, installation of sacrificial anodes is recommended.



Aqualoy Propeller Shaft Tolerance Tables

How To Size A Propeller Shaft

Marine Propeller Shaft Dimensions SAE Specification J755

Propeller Shaft Installation

Propeller Shaft Repair

Propeller Shaft Bearing Spacing

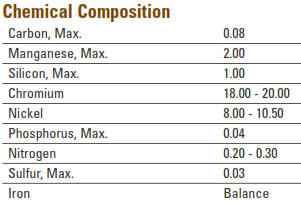

propeller shaft aqualoy 19 chemical properties

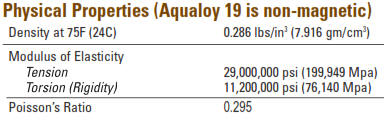

propeller shaft aqualoy 19 physical properties

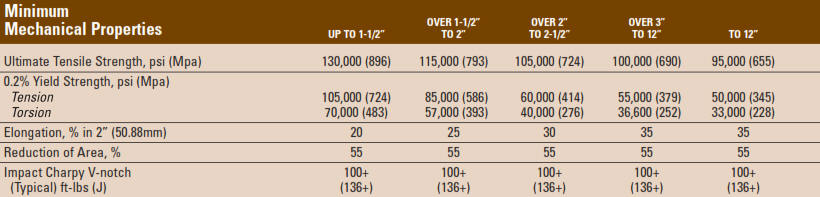

mechanical properties aqualoy 19 propeller shaft



This catalog page includes:

aqualoy propeller shaft, aqualoy shaft, propeller shaft, propeller shafts, marine shaft, boat propeller shaft, marine shafts, marine propeller shaft, marine propeller shafts, ship propeller shaft, marine prop shafts, marine shafting, inboard propeller shaft, sailboat propeller shaft, aqualoy 22, aqualoy 22HS, aqualoy 19, aqualoy 17
