Aqualoy 22 and 22HS

Propeller Shaft (Aquamet)

Marine Propeller Shafts

aqualoy 22 and 22HS propeller shaft



2 1/4 to 8 Inch Diameter
Up to 32 Feet Long

Raw Shaft Material (specify diameter and length)
Finished Machined Shaft (provide drawing)

The Best Corrosion Resistance and Strength Combination
Superior 316SS and Monel 400 in Both Corrosion Resistance and Strength

Applications:
Pleasure Craft

Aqualoy 22HS has similar corrosion resistance to Aqualoy 22 but has the strength of Aqualoy 17.

Aqualoy Propeller Shaft Tolerance Tables

How To Size A Propeller Shaft

Marine Propeller Shaft Dimensions SAE Specification J755

Propeller Shaft Installation

Propeller Shaft Repair

Propeller Shaft Bearing Spacing

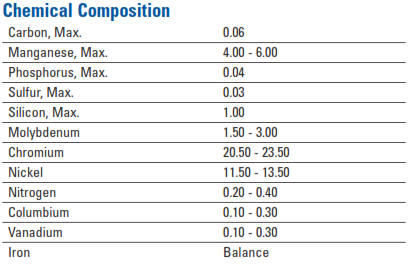

chemical composition aqualoy 22 and 22HS

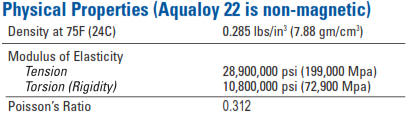

physical properties aqualoy 22 and 22HS

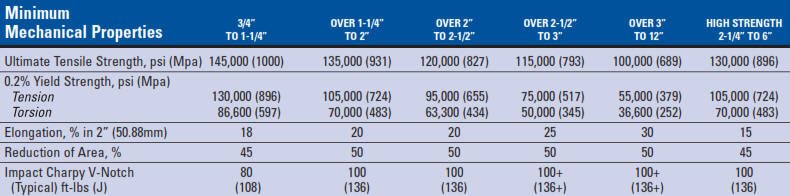

mechanical properties aqualoy 22 and 22HS propeller shaft



This catalog page includes:

aqualoy propeller shaft, aqualoy shaft, propeller shaft, propeller shafts, marine shaft, boat propeller shaft, marine shafts, marine propeller shaft, marine propeller shafts, ship propeller shaft, marine prop shafts, marine shafting, inboard propeller shaft, sailboat propeller shaft, aqualoy 22, aqualoy 22HS, aqualoy 19, aqualoy 17, Aquamet
