How PM&I Can Help Prevent Delays

Aqualoy 17 Propeller Shaft

Marine Propeller Shafts

aqualoy 17 propeller shaft



Up to 8 Inches Diameter and Larger
Up to 32 Feet Long

Raw Shaft Material (specify diameter and length)
Finished Machined Shaft (provide drawing)

The Highest Strength and Hardness of all Stainless Steel Boat Shafting Alloys Over 2 Inches.
Corrosion Resistance Similar to 304SS

To Avoid Galvanic Corrosion Cathodic Protection is Recommended For Salt or Brackish Water Use.
Navy Grade Zinc Anodes, Properly Installed, Should Provide Satisfactory Protection.

Applications:
Tugs, Trawlers, Crew Boats, Patrol Boats, Workboats

Aqualoy Propeller Shaft Tolerance Tables

How To Size A Propeller Shaft

Marine Propeller Shaft Dimensions SAE Specification J755

Propeller Shaft Installation

Propeller Shaft Repair

Propeller Shaft Bearing Spacing

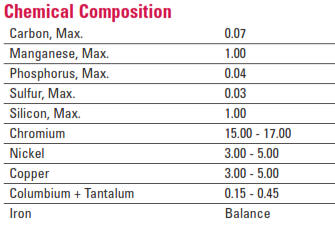

aqualoy 17 propeller shaft chemical composition

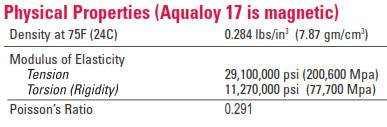

propeller shaft aqualoy 17 physical properties

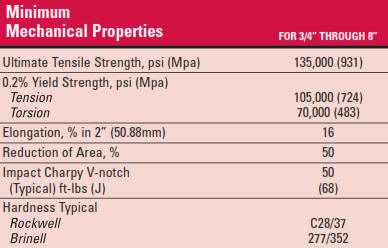

propeller shaft aqualoy 17 mechanical properties



This catalog page includes:

aqualoy propeller shaft, aqualoy shaft, propeller shaft, propeller shafts, marine shaft, boat propeller shaft, marine shafts, marine propeller shaft, marine propeller shafts, ship propeller shaft, marine prop shafts, marine shafting, inboard propeller shaft, sailboat propeller shaft, aqualoy 22, aqualoy 22HS, aqualoy 19, aqualoy 17
