Container Lifting Lugs – ISO Shipping Container – Bottom Side Holes Model LGF-2

$77.00

74 in stock

Stock Items Ship Within 1 to 2 Days



Contact Us At info@pacificmarine.net

        • Large Quantity
        • Customization
        • International Shipping
        • Expedited Shipments
        • Resale
        • Other Options

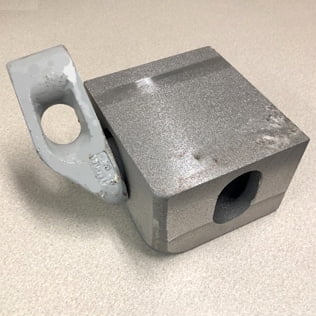

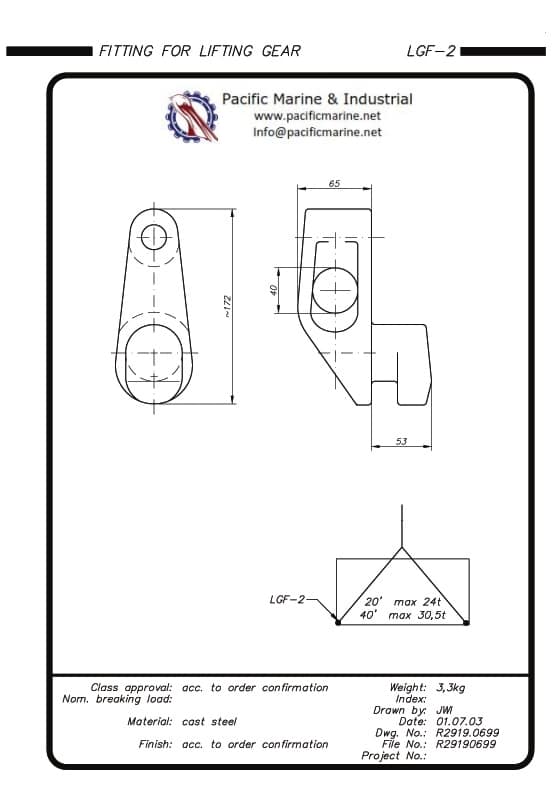

Model LGF-2
ISO Shipping Container LIfting Lug
Bottom Side Hole Corner Lifting Lug
Construct Your Own Container Lifting Gear

Lifting with the bottom side holes is a safer and stronger lifting method.

Fits Into and Works with ANY ISO Bottom Side Hole in Container Corner or Other Hole with Same ISO Dimensions

8.25 Lbs. Each
Structural Steel
Primer Paint
Working Load Limit: 4 Lugs:
20 Foot Container: 24 Metric Tons
40 Foot COntainer: 35 Metric Tons

The equipment you construct using these lugs should be designed and tested as a complete system in accordance with lifting practices and laws.

See All of PM&I's Container Lifting Equipment Products Here:
Spreaders, Dolly, Lugs, Casters, Etc

Additional information

Weight8.25 lbs
Dimensions7 × 5 × 3 in
