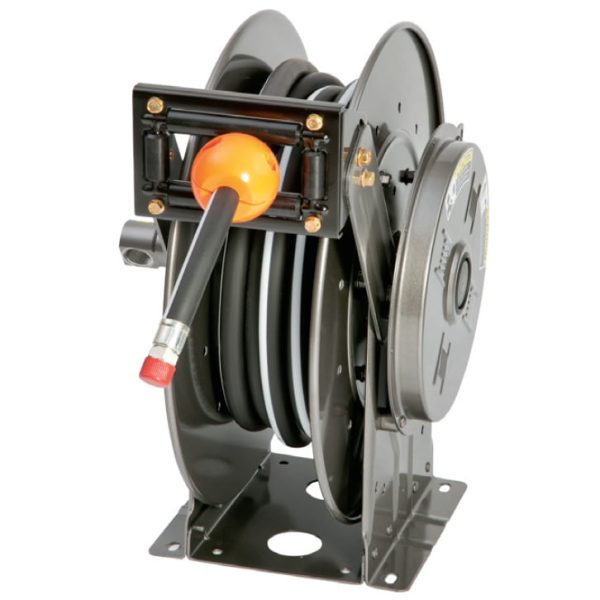

DEF-450H
Spring Rewind Diesel Exhaust Fluid Reel Kit
With 1/2″ x 50′ Hose and Hose Stop

DEF-450H*
Spring Rewind Diesel Exhaust Fluid Reel Kit with 1/2" x 50' Hose and Hose Stop

304 stainless steel fluid path, SST peroxide cured swivel joint with EPDM seals, 1/2” female NPT riser, “Tru Blue” DEF hose with 1/2” male NPT fittings and HS-35 hose stop installed.

• Narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° 304 stainless steel full-flow swivel with EPDM seals and 1/2" female NPT threads.
• Standard fluid path & outlet: 304 SST fluid path.

See our Full Catalog of Hose and Cable Reels

Customizable Roller Positions

Repositionable rollers allow the hose to pay out of the reel in the exact direction you need depending on how the reel is mounted.

Roller Position TR

• Reel will be installed in the upright position at any point from floor to eye level.
• Reel will be installed on floor.
• Reel will be installed on ceiling with hose/cable to pay out parallel to the ceiling.
• Reel will be installed on truck bed or workbench with hose coming off of the top of the reel.

Roller Position SR

• Reel will be installed in the upright position at any point from floor to eye level.
• Reel will be installed on a wall with hose/cable to be retracted close to the wall.
• Reel will be installed on ceiling and hose/cable will pay out parallel to and across the ceiling.
• Reel will be installed on truck bed or workbench with hose coming off of the bottom of the reel.

Roller Position VR

• Reel will be installed in the upright position and hose/cable will be pulled straight up from the reel.
• Reel will be installed on ceiling to lift hose/cable, like in a lube shop.
• Reel will be installed on a wall with hose/cable to be pulled straight out forward.
