N716-17-18-8L

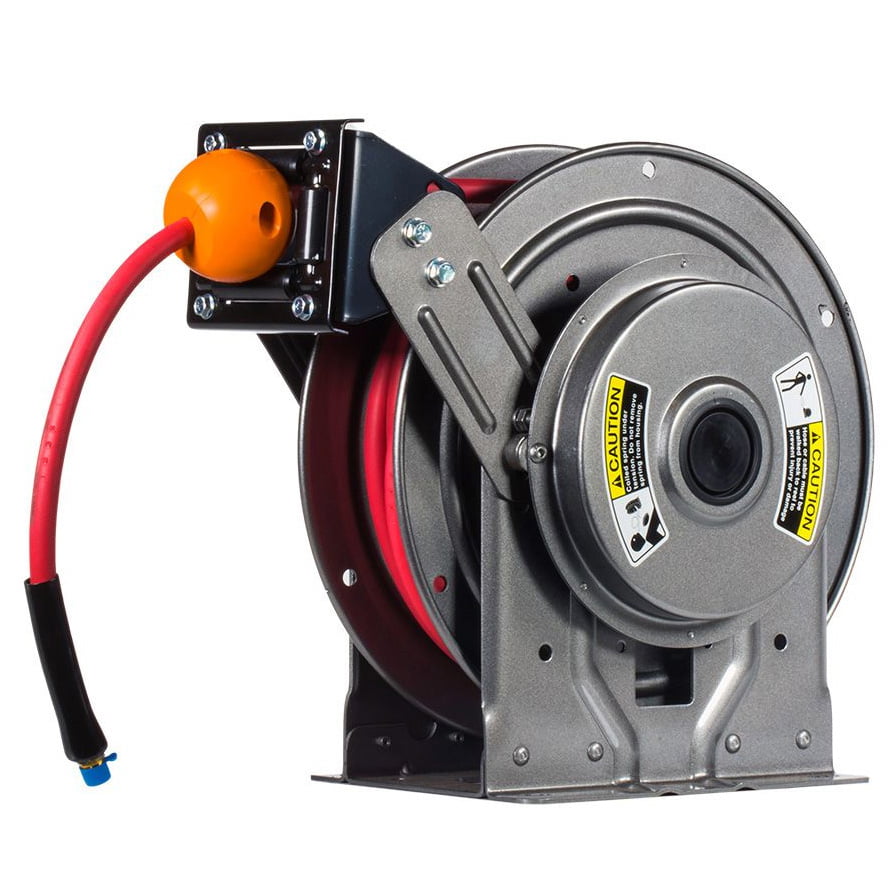

Spring Retractable Air Hose Reel Kit
With 1/2″ x 50′ 280 PSI Hose and Hose Stop
Shop Air Only

$510.00

N716-17-18-8L | Spring Retractable Air Hose Reel Kit | With 1/2" x 50' 280 PSI Hose and Hose Stop | Shop Air Only

Single textile braid reinforced synthetic rubber hose and HS-35 hose stop installed.

  • Standard N Series has a narrow frame and compact mounting base.
  • Non-sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads.
  • Standard outlet: 1/2" female NPT threads.

See our Full Catalog of Hose and Cable Reels

Customizable Roller Positions for N716-17-18-8L | Spring Retractable Air Hose Reel Kit | With 1/2" x 50' 280 PSI Hose and Hose Stop | Shop Air Only

Repositionable rollers allow the hose to pay out of the reel in the exact direction you need depending on how the reel is mounted.

Roller Position TR

  • Reel will be installed in the upright position at any point from floor to eye level.
  • Reel will be installed on floor.
  • Reel will be installed on ceiling with hose/cable to pay out parallel to the ceiling.
  • Reel will be installed on truck bed or workbench with hose coming off of the top of the reel.

Roller Position SR

  • Reel will be installed in the upright position at any point from floor to eye level.
  • Reel will be installed on a wall with hose/cable to be retracted close to the wall.
  • Reel will be installed on ceiling and hose/cable will pay out parallel to and across the ceiling.
  • Reel will be installed on truck bed or workbench with hose coming off of the bottom of the reel.

Roller Position VR

  • Reel will be installed in the upright position and hose/cable will be pulled straight up from the reel.
  • Reel will be installed on ceiling to lift hose/cable, like in a lube shop.
  • Reel will be installed on a wall with hose/cable to be pulled straight out forward.

Additional information

Weight 100 lbs
Dimensions 20 × 20 × 20 in
