Braden Winch CH175 Series

CH175 Series Construction Hoist
Braden Winch

The CH165 Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch CH175B Sales Flyer

Braden Winch CH175B Series Materials List

Braden Winch CH165A CH175B CH230B Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Multi-stage planetary reduction

Options:
Gear Ratios
Hydraulic Motors (Gear, Vain, Piston)
Drum Sizes
Mounting Configurations
Free Fall Hydraulic Winch - Hoist
Controlled Free Fall Hydraulic Winch - Hoist
   Ratchet and Pawl

Model Rated Capacity Weight
CH175B 17,500 lbs (9,072 kg) 710 lbs (322 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

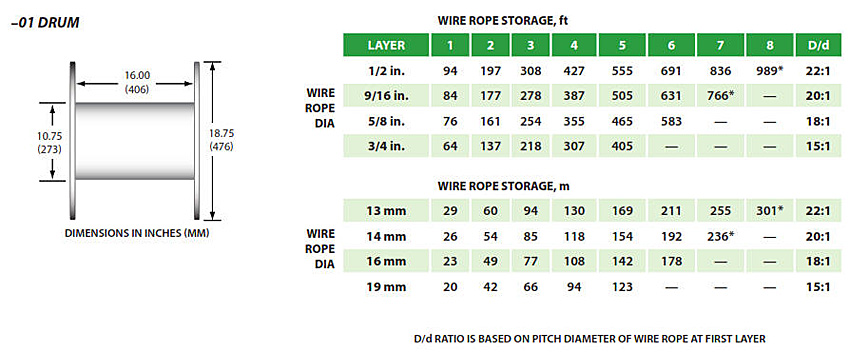

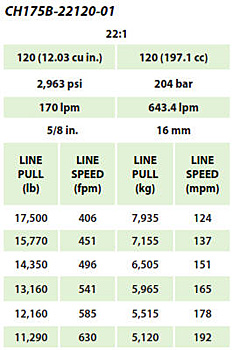

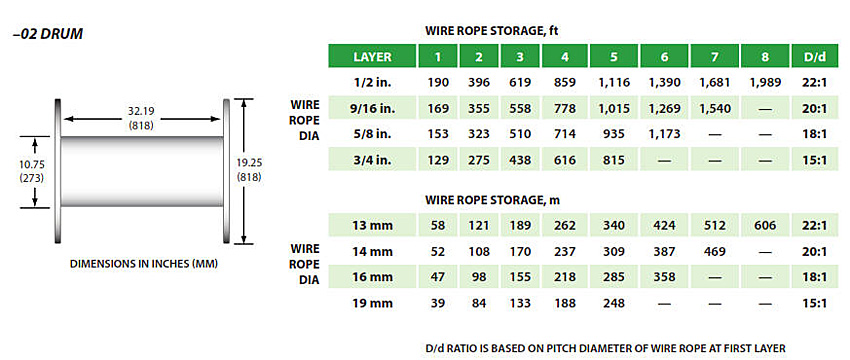

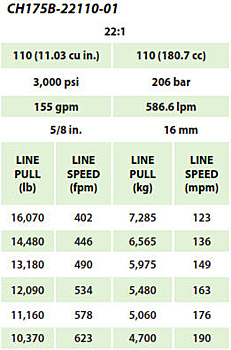

Braden Winch CH175 Series  Braden Winch CH175 Series  Braden Winch CH175 Series

Braden Winch CH175 Series

Braden Winch CH175 Series

Braden Winch CH175 Series

Braden Winch CH175 Series
