PDKS Series Aluminum Manual Chain Hoists

1 to 5 Metric Tons Capacity

3 Meter Standard Lift

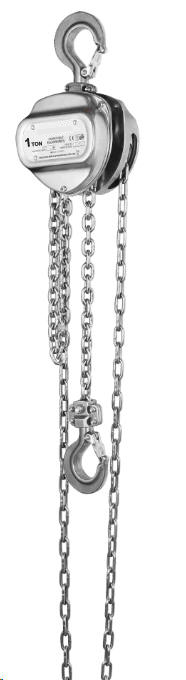

PDKS Series Aluminum Manual Chain Hoists

Aluminum Chain Hoist PDKS Series

1 to 5 Metric Ton

3 Meter Standard Lift (Customization Possible)

1 or 2 Chain Fall


This product is suitable for chemical applications and high cleaning requirements,

such as specialist topside and subsea hoisting range, drug processing, food processing, sewage treatment and other industries.


Make to the Standards: EN13157/ASTM117


● It can be used within an operating temperature range from -40°C to +55°C.
● Chain hoist capacity range from 1 ton to 5 tons.
● Double pawls standard.
● Stainless steel hooks with stainless steel safety latch.  Free rotation 360 degrees.
● Stainless steel cover is strong and corrosion resistant.
● 600hrs + Protection against salt spray tests according to ASTM B117.
● Calibrated grade S (6) 316L stainless steel load chain, hand chain and bottom hook

(stainless steel bottom hooks are only available for 500kg and 1 ton units).
● Calibrated grade T (8) load chain to BS EN818-7 DT9 corrosion coated
and hand chain dacromet corrosion coated.

PDKS Series Aluminum Manual Chain Hoists
PDKS Series Aluminum Manual Chain Hoists
