Roller Fairleads - Fair Lead

4 Roller Fairleads

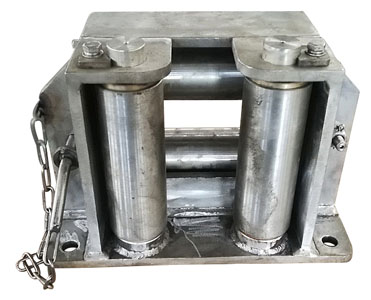

Four 4 Roller Fairleads Stainless Steel Roller Fairleads

Information Needed To Quote Roller Fairleads

Standard Features:
For departure angels up to 45 degrees
Heavy Duty Steel Rollers
Oil Impregnated Bronze Bushings (No Grease Required)
Alloy Steel Shafts with Bolt-In-Place Keeper Tabs
All Steel Frame Construction and Weld Down Base Plate
Designed For Daily Use In Harsh Environment
White Blasted and Coated With Blue Marine Duty Paint

Optional Features:
Stainless Steel Shafts and Hardware
Sealed Roller Bearings
Various Roller Materials for Special Applications
Bolt Down Style Base Plate
Additional Rollers and Configurations
Special Primers and Paints / Coatings

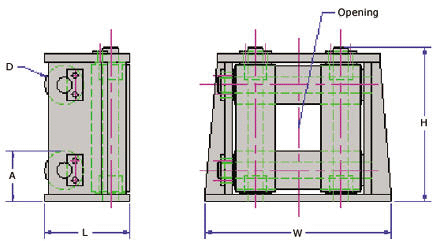

Model Max Wire Wire Opening Overall Overall Overall Base Roller Approx
Number Size Breaking Size Width Height Length To Opening Diameter Weight
  (inch) (lbs.) (W x H) Inch W H L A D
F4-25 1/2 26,600 3 x 3 15 10 5 1/2 3 1/2 2 1/2 90
F4-40 3/4 58,800 4 x 4 18 15 9 5 1/8 4 315
F4-60 1 1/4 159,800 4 x 4 28 21 1/2 13 1/2 7 1/2 6 840
F4-80 1 3/4 306,000 8 x 8 32 27 17 9 3/8 8 1800
F4-100 2 1/4 494,000 10 x 6 40 35 21 15 1/2 10 3400
  Larger units are available: Advise rope size and type.

Drawing and Models:
Four Roller Fairleads
