Raised Container Foundation

AC-B4 Quadruple Raised Container Foundation

Class Society Approved: ABS, DNV-GL, CCS and Others

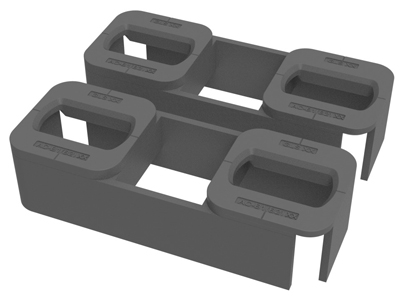

AC-B4 Quadruple Raised Container Foundation
   AC-B4 Quadruple Raised Container Foundation


Part Numbers:

Height

Centers Status

AC-B4/110/203/279 (Standard)

110mm

203 and 279mm Made to Order

AC-B4/XXX/XXX/XXX

XXX as Needed XXX and XXX as Needed Made to Order


Weld to the deck or hatch cover.

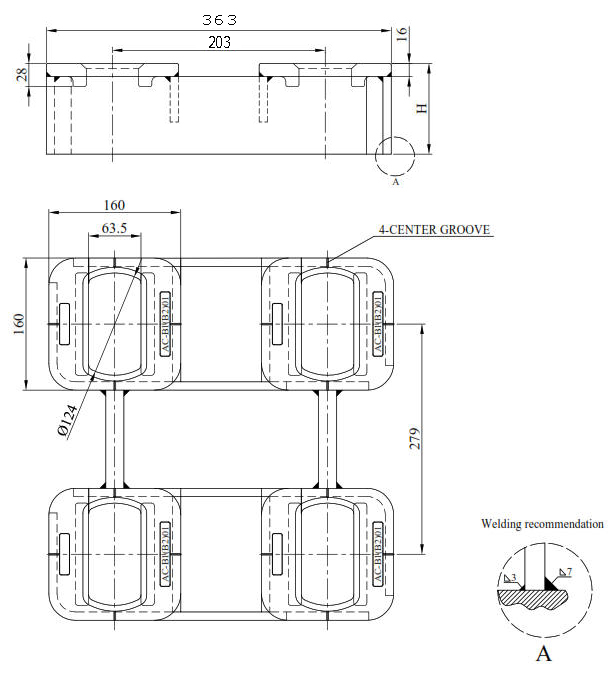

Industry Standard is 110 mm height, 203 mm and 279 mm ISO hole centers



Special height and distance available upon request



AC-B4 Quadruple Raised Container Foundation



Counter part: Container Securing Twistlocks



Type and Test Class Approved on Request



Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?



Similar Design and Function Cross Reference:
