Heat Exchanger Gasket Materials


General Information:

NBR - FDA is a peroxide cured Nitrile Rubber for food applications.

It has been replacing NBR-HT for industrial applications because the two products

are equal in almost all characteristics. NBR-FDA has a limited resistance

to nitric acid solutions so care should be taken when CIP is done.


Typical Applications:

Water applications

Food applications

Milk, cream and other fatty food applications

Industrial oil applications.


Typical Properties:

Hardness 78 Shore A

Tensile Strength 15 MPa

Elongation at break 210 percent

Food approved

Maximum continuous temperature 130 C

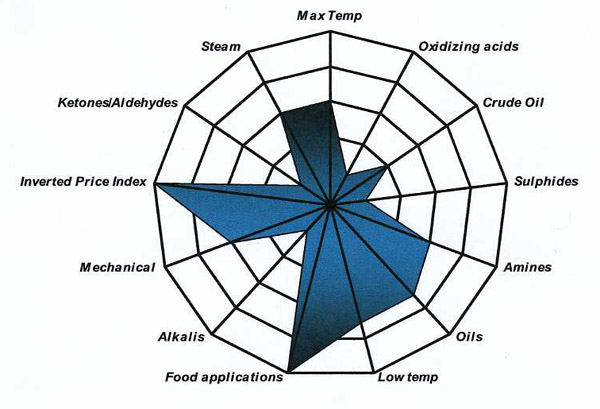

Property Overview:

The greater the distance from the middle the better.

General view in relation to other materials.


Heat Exchanger Gasket Materials NBR
