Stainless Snaps

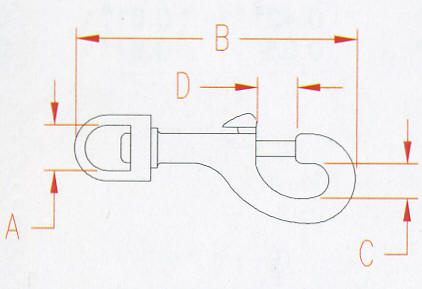

Swivel Bolt Snap

Precision Cast
316 Stainless Steel



Item Size A B C D Weight
S0176-0000 3/8" 0.48" 2.73" 0.32" 0.28" 0.05 lb
S0176-0001 1/2" 0.55" 3.16" 0.38" 0.36" 0.10 lb
S0176-0002 5/8" 0.70" 3.68" 0.45" 0.41" 0.10 lb
S0176-0003 3/4" 0.79" 3.60" 0.37" 0.34" 0.18 lb
S0176-0004 1-1/4" 0.85" 3.80" 0.37" 0.34" 0.25 lb
