How PM&I Can Help Prevent Delays

Stainless Snaps

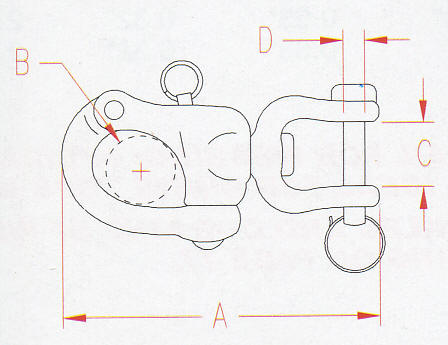

Jaw Swivel Snap Shackle

Precision Cast

316 Stainless Steel



Removable Clevis Pin
Break load is approximately 4 times the work load.

Item A Size B C D Weight
S0171-0001 2-3/4" 0.50" 0.43" 0.25" 0.14 lb
S0171-0002 3-1/2" 0.62" 0.50" 0.25" 0.27 lb
S0171-0003 5" 1.00" 0.87" 0.50" 0.89 lb
