How PM&I Can Help Prevent Delays

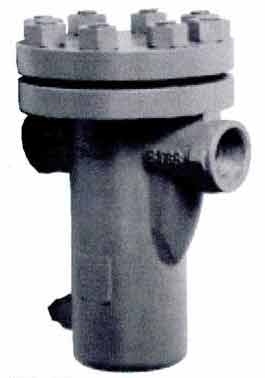

Basket Strainer

Cast

300B2 Series, 1/2 to 2 inches


Basket Strainers, Simplex Strainers

Cast Carbon Steel Basket Strainers, Stainless Steel Basket Strainers

Threaded or Socket Weld


ASME B16.5, B16.34

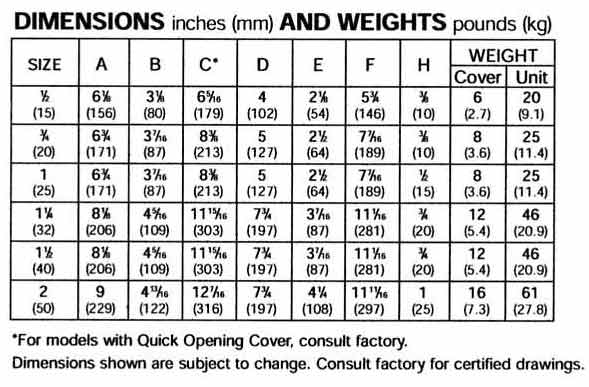

Pressure vs. Temperature Chart Pressure Drop vs. Flow Rate Open Area Ratios

Optional Quick Opening Covers

 Materials of Construction
Part Carbon Steel Stainless Steel
Body A216-WCB A351-CF8M
Cover A216-WCB A351-CF8M
Screen 304SS 304SS
Plug A105 A182-316
Gasket 304 SS Spiral Wound 304SS Spiral Wound
Bolt / Stud A193-B7 A193-B8-1
Nut A194-2H A194-8
