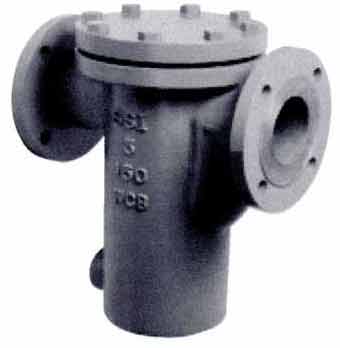

Basket Strainer


150B2 Series, 1 1/2 to 8 inches

Cast Carbon Steel, Cast Stainless Steel, RF

ASME B16.5, B16.34
Pressure vs. Temperature Chart Pressure Drop vs. Flow Rate Open Area Ratios
Optional Quick Opening Covers
Materials of Construction
Item Carbon Steel Stainless Steel
Body A216 WCB A351-CF8M
Cover A216-WCB A351-CF8M
Screen 304 SS 304 SS
Plug A105 304 SS
Gasket 304 SS Spiral Wound 304 SS Spiral Wound
Bolt / Stud A193-B7 A320-B8
Nut A194-2H A194-8
