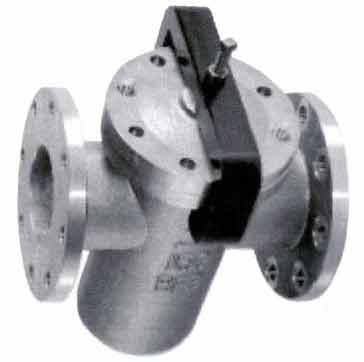

Basket Strainer

Cast

Quick Opening Covers

Cover Type C - C Clamp

1/2 inch to 12 inch
Upper Pressure Limits: 50 PSIG (3.44 bar) (for up to 5 inch inlet - request for larger sizes)
Max Allowable Working Temperature: 100 F (37.8 C)

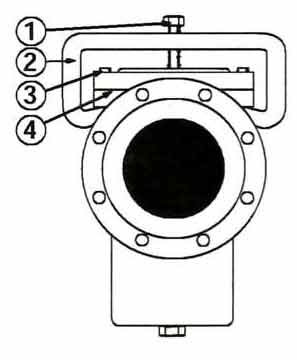

Materials Of Construction
Item Description Specification
1 Clamp Bolt (2) A449 Grade 5
2 Clamp A516-70 Carbon Steel
3 Anti-rotating Stud (2) A307-B
4 Gasket 1/2" to 6" Flat Rubber (non Asbestos)
  Gasket 8" to 12" Buna-N O Ring (Groove in Cover)
