Braden Winch HP65 Series

Planetary Gear Recovery Winches
HP65 Series

Braden Winch Upright Planetary Gear Recovery

Our planetary gear recovery winches are a high performance product designed to provide many years of service.

Braden Winch HP65A Sales Flyer

Purchase ONLINE Selected Braden Winch from Stock

Information Needed to Quote Hydraulic Hoist and Hydraulic Winches

How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:

Easy & efficient installation procedures

Band brake controls back-spinning and bird-nesting of wire rope when clutch is disengaged

Visible freespool clutch with negative draft jaws for positive engagement under load

Patented brake valve for smooth and precise load control

Optional Features:

2 speed hydraulic motors

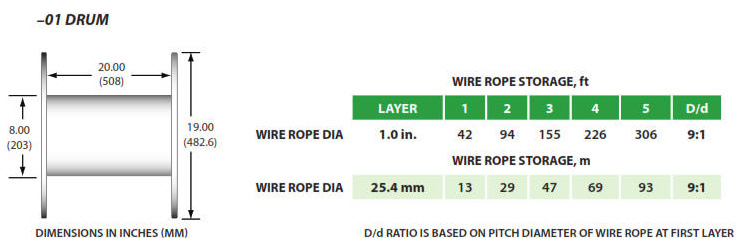

Drum size

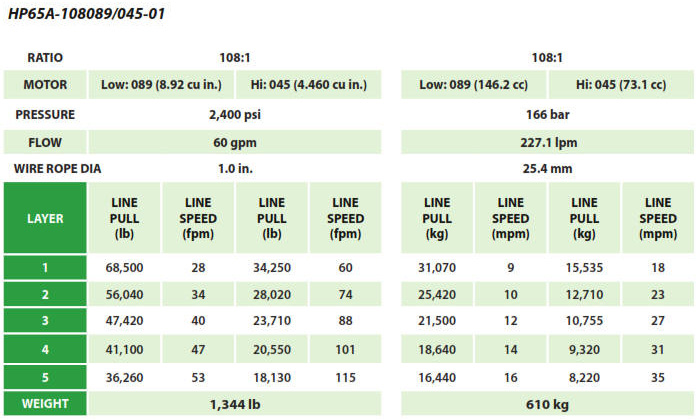

Model	Type	Rated Capacity	Weight
HP50B	Hyd.	50,000 lbs (22,680 kg)	1,075 lbs (488 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed. Be sure to review prior to purchase.
