Braden Winch PD17 Series

PD17 Series

Braden Winch

The PD Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch PD17 Sales Flyer

Braden Winch PD12C PD15B PD17A Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock

Information Needed to Quote Hydraulic Hoist and Hydraulic Winches

How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:

Multi-disc Brake - Spring applied and hydraulically released

Anti-friction bearings for maximum efficiency

Multi-stage planetary reduction

Optional Features:

Gear Ratios

Hydraulic Motors (Gear, Vain, Piston)

Drum Sizes

Mounting Configurations

Free Fall Hydraulic Winch - Hoist

Controlled Free Fall Hydraulic Winch - Hoist

Model	Rated Capacity	Weight
PD17A	17,000 lbs (7,711 kg)	1,100 lbs (499 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed. Be sure to review prior to purchase.

Drum Options	Drum Size	Max. Capacity Estimate
-04	(10.75B x 20.00F x 13.50L)	5/8 in - 589 ft 16 mm - 180 m
-05	(10.75B x 16.50F x 13.50L)	9/16 in - 300 ft 16 mm - 91 m

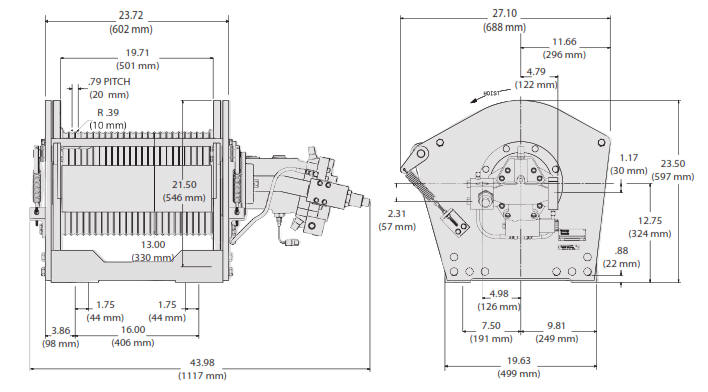

Braden Winch PD17 Series

Braden Winch PD17 Series

Braden Winch PD17 Series
