Braden Winch PD12 Series

PD12 Series

The PD Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch PD12 Sales Flyer

Braden Winch PD12 Series Materials List

Braden Winch PD12C PD15B PD17A Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock

Information Needed to Quote Hydraulic Hoist and Hydraulic Winches

How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:

Multi-disc spring applied, hydraulically released brake to hold the load even if a hydraulic line breaks
Anti-friction bearings used throughout to maximize efficiency
Brake valve for smooth performance
Full load wire rope anchor
High efficiency motor

Optional Features:

Gear Ratios

Hydraulic Motors (Gear, Vain, Piston)

Drum Sizes

Mounting Configurations

Free Fall Hydraulic Winch

Controlled Free Fall Hydraulic Winch

Model	Rated Capacity	Weight
PD12C	12,000 lbs (5,440 kg)	430 lbs (195 kg)

Below models represent only a small number of gearbox and motor configurations.

Contact PM&I for complete product information: info@pacificmarine.net

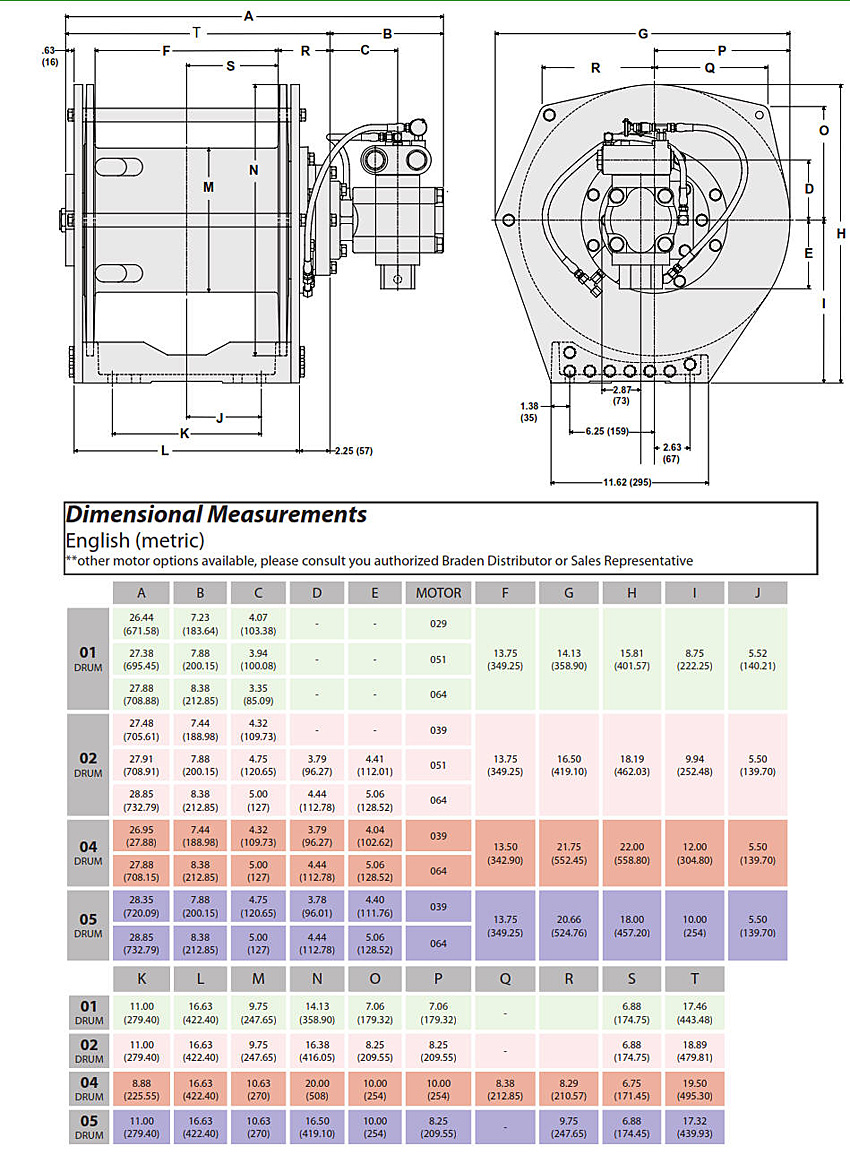

Drum Options:	Drum Size	Max. Capacity Estimate
-01	(9.75B x 14.25F x 13.75L)	9/16 in - 219 ft 14 mm - 67 m
-02	(9.75B x 16.38F x 13.75L)	9/16 in - 399 ft 14 mm - 122 m
-04	(10.63B x 20.00F x 13.50L)	9/16 in - 637 ft 14 mm - 194 m
-05	(10.63B x 16.50F x 13.50L)	9/16 in - 327 ft 14 mm - 100 m

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed. Be sure to review prior to purchase.

Model: PD12C-59039-02
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)
1	12000	5455	162	49	66	20
2	10820	4918	179	55	139	42
3	9860	4482	197	60	220	67
4	9050	4114	214	65	308	94
5	8370	3805	232	71	403	123
	The last legal layer per ANSI is 5				D/d=18.4:1

Engineering Data - Model PD12C-59039-02

	English	Metric
Ratio	59.06:1
Drum Diameter	9.75 in
Flange Dia	13.38 in	416.1 mm
Flange Width	13.75 in	349.3 mm
Pressure	2407 psi	166 bar
Flow	65 gpm	246 1pm
Wire Rope Diameter	0.56 in	14.224 mm

Model PD12C-41064-01
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)
1	12000	5455	176	54	66	20
2	10820	4918	195	59	139	42
3	9860	4482	214	65	220	67
4	9050	4114	234	65	308	94
	The last legal layer per ANSI is 5				D/d=18.4:1

Engineering Data - Model PD12C-41064-01

	English	Metric
Ratio	41.62:1
Drum Diameter	9.75 in
Flange Dia	14.25 in	362 mm
Flange Width	13.75 in	349.3 mm
Pressure	1896 psi	130.8 bar
Flow	80 gpm	302.8 1pm
Wire Rope Diameter	0.56 in	14.224 mm
