Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed. Be sure to review prior to purchase.

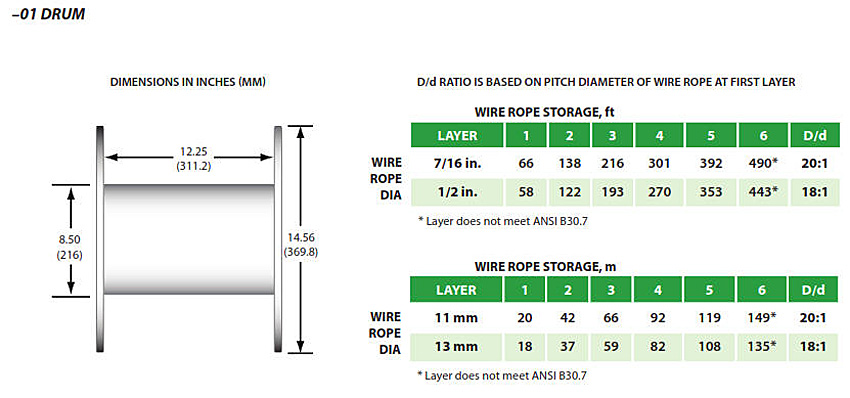

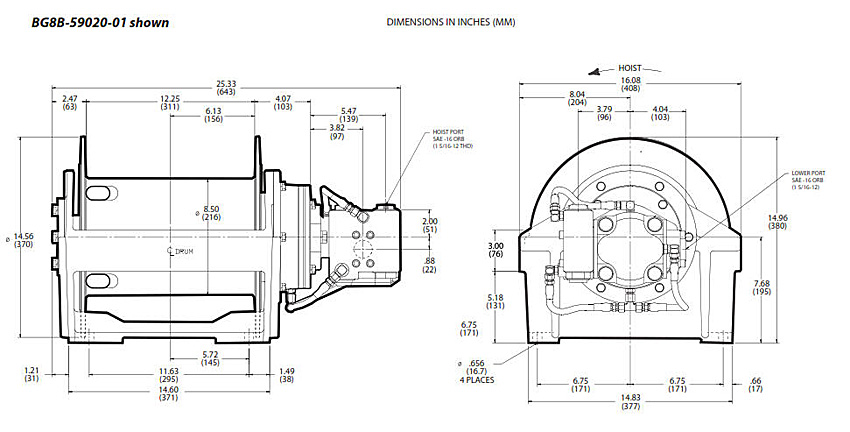

Model BG8B-59020-01
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)

1	8000	3636	140	43	58	18
2	7200	3273	156	48	122	37
3	6550	2977	172	52	193	59
4	6000	2727	187	57	270	82
5*	5540	2518	203	62	353	108
6	5140	2336	218	66	443	135
	*The last legal layer per ANSI is 5				D/d=18:1

Engineering Data BG8A-59020-01

English

Metric

Ratio

59.06:1

Drum Diameter

8.5 in

Flange Dia

14.56 in

369.8 mm

Flange Width

12.25 in

311.2 mm

Pressure

2920 psi

201 bar

Flow

35 gpm

132 lpm

Wire Rope Diameter

0.5 in

13 mm

Model BG8B-23029-01
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)

1	4880	2215	361	110	58	18
2	4390	1990	401	122	122	37
3	3990	1810	441	135	193	59
4	3660	1660	481	147	270	82
5*	3380	1535	521	159	353	108
6	3140	1425	561	171	443	135
	*The last legal layer per ANSI is 5				D/d=18:1

Engineering Data BG8B-23029-01

English

Metric

Ratio

23.06:1

Drum Diameter

8.5 in

Flange Dia

14.56 in

369.8 mm

Flange Width

12.25 in

311.2 mm

Pressure

3000 psi

207 bar

Flow

50 gpm

189.3 lpm

Wire Rope Diameter

0.5 in

13 mm

BG8B-34039-01
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)

1	8000	3630	244	74	58	18
2	7200	3265	271	83	122	37
3	6550	2970	298	91	193	59
4	6000	2720	325	99	270	82
5*	5540	2515	352	107	353	108
6	5140	2330	379	116	443	135
	*The last legal layer per ANSI is 5				D/d=18:1

Engineering Data BG8B-34039-01

English

Metric

Ratio

34.2:1

Drum Diameter

8.5 in

Flange Dia

14.56 in

369.8 mm

Flange Width

12.25 in

311.2 mm

Pressure

2420 psi

166 bar

Flow

65 gpm

246 lpm

Wire Rope Diameter

0.5 in

13 mm

BG8B-34039-01H
Layer	Line Pull		Line Speed		Rope Capacity
	(lbs)	(kg)	(fpm)	(mpm)	(ft)	(m)

1	9000	4090	202	62	58	18
2	8100	3680	225	69	122	37
3	7360	3345	248	76	193	59
4	6750	3065	270	82	270	82
5*	6230	2830	293	89	353	108
6	5790	2630	315	96	443	135
	*The last legal layer per ANSI is 5				D/d=18:1

Engineering Data BG8B-34039-01H

English

Metric

Ratio

34.2:1

Drum Diameter

8.5 in

Flange Dia

14.56 in

369.8 mm

Flange Width

12.25 in

311.2 mm

Pressure

2720 psi

187 bar

Flow

55 gpm

208 lpm

Wire Rope Diameter

0.5 in

13 mm
