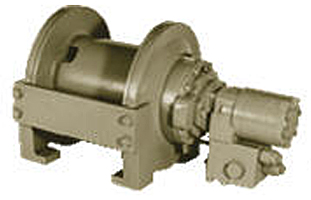

Braden Winch BG4B Series

BG4B Series
Gearmatic Winch

The BG Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch BG4 Sales Flyer

Braden Winch BG4B Series Materials List


Braden Winch BG4A and BG4B Series Install, Maintenance and Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard features of the BG4 include:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Single-stage planetary reduction

Optional Features of the BG Series Planetary Hoist
Hydraulic Motors (Displacements, 2-Speed)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

Model BG4A-05119-01

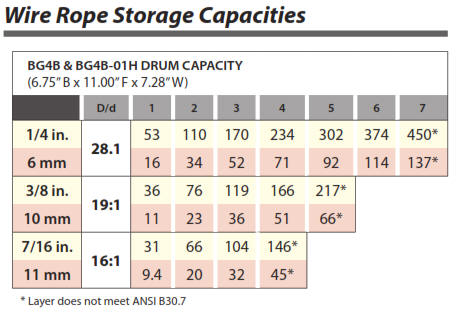

Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 4000 1818 134 41 36 11
2
 3620 1645 148 45 76 23
3
 3300 1500 162 49 120 37
4
 3040 1382 176 54 168 51
5
 2810 1277 190 58 219 67
  The last legal layer per ANSI is 4 D/d=19:1

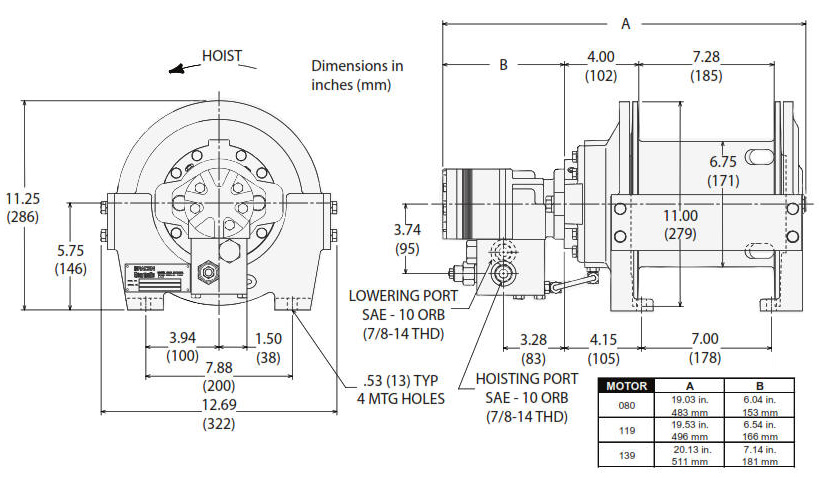

Engineering Data BG4A-05119-01

English Metric
Ratio 5:1
Drum Diameter 6.75 in
Flange Dia 11 in 279.4 mm
Flange Width 7.28 in 184.9 mm
Pressure 2263 psi 156.1 bar
Flow 20 gpm 75.7 lpm
Wire Rope Diameter 0.375 in. 9.525 mm

Model BG4A-05080-01
Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 2850 1295 199 61 36 11
2
 2580 1173 220 67 76 23
3
 2350 1068 241 73 120 37
4
 2170 986 262 80 168 51
5
 2010 914 283 86 219 67
  The last legal layer per ANSI is 4 D/d=19:1
Engineering Data BG4A-05080-01

English Metric
Ratio 5:1
Drum Diameter 6.75 in
Flange Dia 11 in 279.4 mm
Flange Width 7.28 in 184.9 mm
Pressure 2398 psi 165.4 bar
Flow 20 gpm 75.7 lpm
Wire Rope Diameter 0.375 in. 9.525 mm

Model BG4A-05139-01H
Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 5000 2273 144 34 36 11
2
 4520 2055 126 38 76 23
3
 4130 1877 138 42 119 36
4
 3800 1727 150 46 166 51
5
 3520 1600 162 49 217 66
  The last legal layer per ANSI is 4 D/d=19:1
Engineering Data BG4A-05139-01H

English Metric
Ratio 5:1
Drum Diameter 6.75 in
Flange Dia 11 in 279.4 mm
Flange Width 7.28 in 184.9 mm
Pressure 2422 psi 167 bar
Flow 20 gpm 75.7 lpm
Wire Rope Diameter 0.375 in. 9.525 mm

Braden Winch BG4A Series

Braden Winch BG4A Series
