Non Weathertight Steel Hatch Type F

Quick Acting Dog Secured - Open from Either Side

Non Weathertight Steel Hatch Type F



Type F

Quick Acting Dog Securing Mechanism

Open from Either Side

Hinged On Side as Needed (Long or Short)

Spring or Weight Open Assisted

Class Society Approval on Request



Modifications and Other Sizes Possible

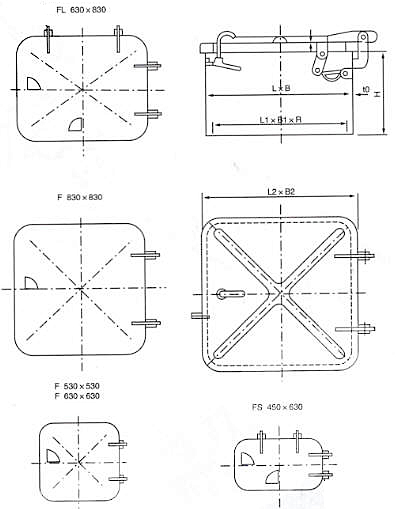

Hinge Position:

Hinge On Equal Side: F

Hinge on Short Side: FS

Hinge on Long Side: FL



Non Weathertight Steel Hatch Type F



Non Weathertight Steel Hatch Type F
