Seattle Ferry Seats

Aluminum Construction

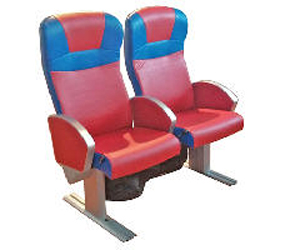

Seattle Ferry Seats

Part Numbers:

Fixed Backrest: Seattle-FB

Reclining Backrest: Seattle-RB

Full Reclining: 150 Degrees: Seattle-FR

Tested in accordance with MSC.97(73)-HSC2000

HSC - High Speed Craft - Certified

Certified by BV - Bureau Veritas

Fabric and Synthetic Leather (PVC) tested according to IMO FTP Code, 2010 Part 8

By US Coast Guard Approved INTERTEK Lab.

Number of Seats Per Row As Desired

470mm Width Between Arm Rests

490mm Overall Width

50mm (or 80mm) Arm Rest Width

Materials of Construction:

Aluminum Seat Frame, Beam, Legs, Track and Arm-Rest

Fixed Back Versions Have 30 cm Iron Pipe Inside Aluminum Tube For Increased Strength

Screws and Nuts Are 304 Stainless Steel

Upholster Materials:

Treated Fabric

PCV / Synthetic Leather

Leather

All upholstery materials include fire certificate

Included With Product:

Seat Track or Bolt Down Mounting

Life Jacket Bag

Head Rest Cover

Comfort Arm Rest Pad

Flat or Curved or Fold Up Arm Rest Style

Magazine Pouch Seat Back

View a List of Selected PM&I Marine Furniture Projects

Information Required to Quote Ferry Seats

Download PM&I's Ferry Seats Catalog

Select All Ferry Seats Options

View Ferry Seats Upholstery and Wood Grain Color Samples

Download Ferry Seats Installation Manual

Ferry Seats Installation Instruction Video

View All Ferry Seat Options Here

View PVC and Fabric Upholstery Color Samples

Download Pacific Marine & Industrial Ferry Seat Catalog

Features:

- Reclines From 106 to 124 Degrees

- Can Support Up to 6 G Vessel Acceleration Speed

- Life Jacket Can Be Installed Under Chair

- Width 490mm (standard)

Seattle Ferry Seats

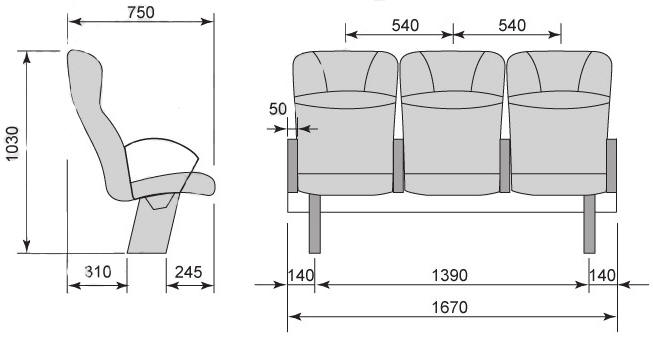

All dimensions in millimeters.
