Utility Portable Hydraulic Capstan

Hydraulic Powered

Utility Portable Capstan Winch
Model HY3D

Purchase ONLINE Utility Portable Capstan Winch

View Portable Utility Capstan Accessories

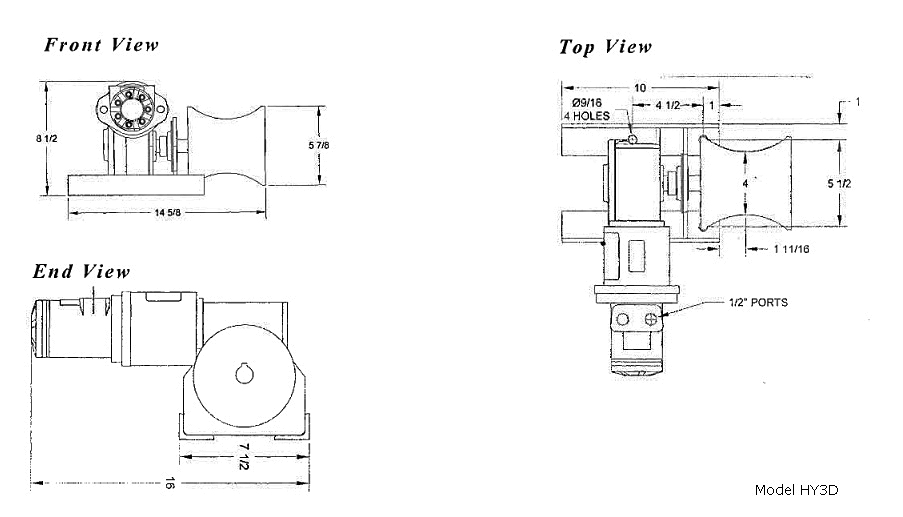

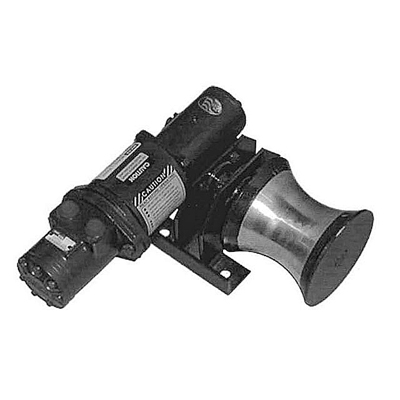

Model HY3D Portable Hydraulic Capstan with Hydraulic Power and 1600 Lbs. Max Pull



See version with Bayonet Drive output shaft here.



Features

• 800-lb single-line or 1,600-lb double-line lift

• Worm gear reduction for positive load holding

• Portable and rugged

• Needs only 2GPM and 900 psi Hydraulic Power

• Full power reversible

• Control valve available



Applications

Designed for material handling usage only.

Utility truck installation

Overhead line crews

Tower and antenna erection

Transformer replacement



Construction Features:

• Heavy-duty angle base drilled for four 1/2" bolts (9/16" mounting holes) with no welding required

• Hydraulic motor coupled to gear box input shaft

• Hardened steel worm gear holds load in position when stopped.

• Stress-proof drum shaft

• Frictionless bearings



Power:

• 3 Cubic inch high torque rotary hydraulic motor.

• Hydraulic motor coupled to gear box input shaft

• 1/2"-14 NPTF hydraulic connections



Pump Requirements:

• 2GPM at 900 psi minimum pump capacity

• 12 GPM at 1500 psi recommended pump capacity

• 2250 psi maximum



Hoisting Rope:

Consult your local dealer for type and size of rope.

Maintain at least three wraps of rope on capstan drum when in use.

Heavier loads may require four wraps of rope.



Speeds:

Recommend 12GPM at 1500psi

• 29 RPM: No Load

• 39 FPM: 500 lbs

Minimum 2GPM at 900psi

• 5 RPM: No Load

• 5 FPM: 500 lbs

Line speed is dependant on pump system and equipment operator.

For best results use the recommended supply and allow minimal rope slippage.



Duty Cycle:

• 25% – 15 min/hr when operating at full load.



Shipping Weight: 60 lbs.



Factory-Installed Options: (Email PM&I for Quotes)

• Bayonet output shaft

• 3 position 4 way directional control valve


Utility Portable Hydraulic Capstan
