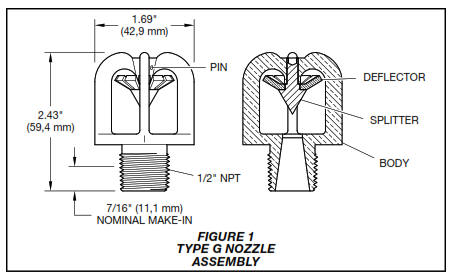

Type G Countermeasure Washdown Nozzle

Type G Countermeasures Washdown Nozzle

For pipe end suspended use

Typically In Stock

Type G Countermeasures Washdown Nozzle Catalog Cut Sheet

Discharge Coefficient
3.0 GPM/psi½
(43,2 LPM/bar½)

Water Discharge Pattern
The design of water spray systems using the Type G Nozzles is to be in
accordance with the applicable standards of the Naval Sea Systems Command.
The approximate water discharge pattern at the deflector is 125 degrees.

Water Pressure

The recommended range of flowing pressure at the nozzle inlet
is 20 to 60 psi (1,4 to 4,1 bar).

Thread Connection
1/2 Inch NPT

Nozzle Marking
“G-125-.328”

Weight
0.3 lbs. (0,14 kg)

Physical Characteristics
The Body of the Type G Nozzle is cast from aluminum
bronze per ASTM B148 (UNS C95300),
the Splitter is naval brass per ASTM B21 (UNS C46400),
the Deflector is silicon bronze per ASTM B96 (UNS C65500),
and the Pin is bronze per ASTM B159 (UNS C51000).

Tyco Johnson Controls P/N 49-554-1-328
