Container Lashing Bar

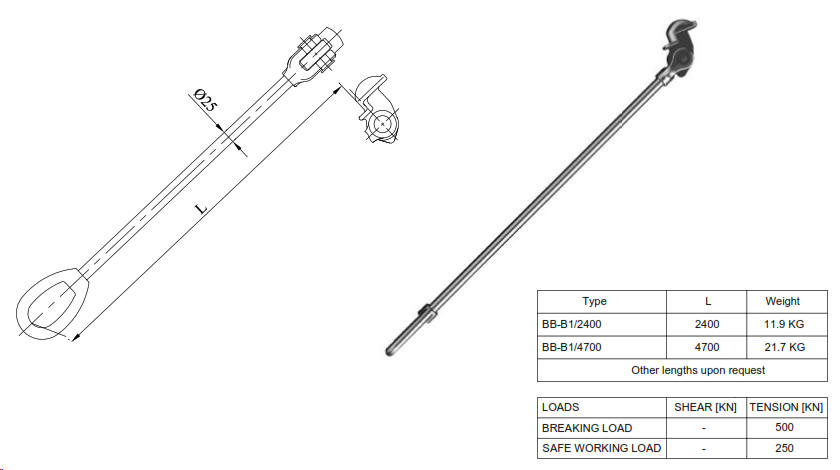

BB-B1 Eye to Swivel Head Container Lashing Bar

Class Society Approved: ABS, DNV-GL, CCS and Others

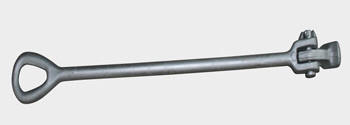

Container Lashing Bar Eye to Swivel

BB-B1/XXXX Lashing Bar

Eye to Swivel Head Style Container Lashing Bars



Breaking Load: 490 kN

Weight: 9.4 kg / 2 M (LB-10)



Counter Part: Hook to Jaw Turnbuckle and Container Corner Casting



Type and Test Class Approved on Request



Conatiner Lashing Bar


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?

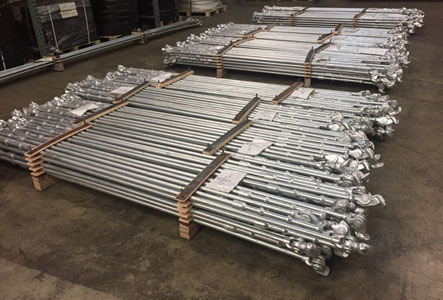

Container Lashing Bars


Similar Design and Function Cross Reference:



GLS BB-B1

MacGregor LB-10

MacGregor ELB-C

SEC R-ES

SEC F-ES

German Lashings LR-28

ILS LB-3S

Lucky Sea C4-1-50

SC Lashings LR-4

All Set ELB-C-50

Peck & Hale RR19

TEC BR-32B

Taiyo G-10-25A

Taiyo G-10-22

Koei K-1731
