Container Lashing Bar Extension

BB-E1 Container Lashing Bar Extension for Eye to Swivel Bars

Class Society Approved: ABS, DNV-GL, CCS and Others

  Container Lashing Bar Extension

 BB-E1/310 Extension

For BB-B1/XXXX Type Lashing Bar

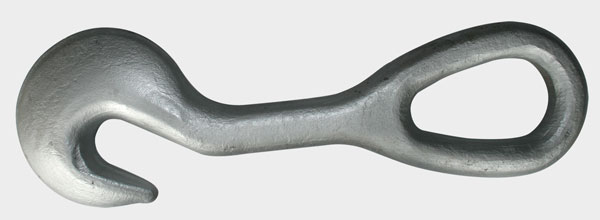

Hook to Eye Extension for Eye to Swivel Head Container Lashing Bar



Breaking Load: 490 kN

Weight: 9.4 kg / 2 M (LB-10)



Fits Between: Hook to Jaw Turnbuckle and BB-B1 Container Lashing Bar



Type and Test Class Approved on Request



Container Lashing Bar Extension


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?


Container Lashing Bars


Similar Design and Function Cross Reference:



GLS BB-E1

MacGregor LB-4

MacGregor D-113

MacGreogor M-4S

SEC R-EHS, SEC R-HES

All Set M-4S

German Lashings R7.91

ILS LB-4

Lucky Sea C3-1-50/420

Lucky Sea C3-2

Peck & Hale H208

TEC BR-04

Taiyo G-8-50
