Elongated Container Foundation

Single Elongated Hole Container Foundations

Class Society Approved: ABS, DNV-GL, CCS and Others

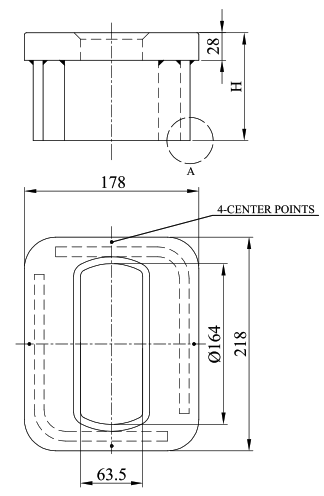

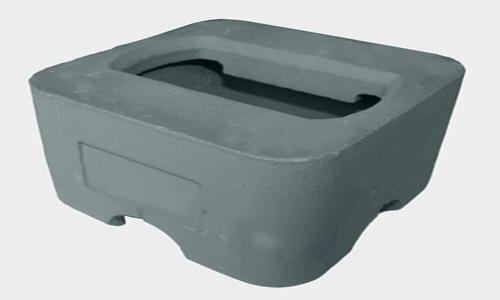

Single Elongated Hole Container Foundations

Single Elongated Container Foundations

Standard Height 110mm



Part Numbers:

Height

Elongation

Status

AC-B1/110/164

110mm

164mm

Special Order

AC-B1/110/174

110mm

174mm

Special Order

AC-B1/110/184

110mm

184mm

In Stock

AC-B1/XXX/XXX

XXX as Needed

XXX as Needed

Special Order



Multiple Class Society Approved



Single Elongated Hole Container Foundations  Single Elongated Hole Container Foundations

Single Elongated Hole Container Foundations


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?



Similar Design and Function Cross Reference:



GLS AC-B1/D/184

MacGregor  TF-1-184L

SEC SF-1/184

German Lashings RS-11.1-184

Lucky Sea A5-1S(185)

Taiyo I-30L
