Shipping Container Lift and Lower Off Chassis

Shipping Container Lifting Equipment

Part Number: SCLL

4 Required for Operation - One per Container Corner

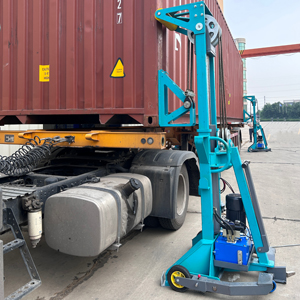

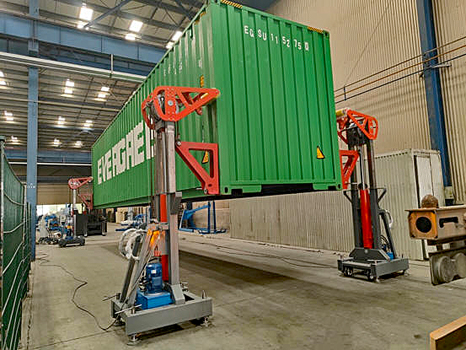

Lift Container Off Chassis and Bring To Ground for Loading / Unloading

Maximum Container Weight: 40 Metric Tons

Maximum Lift Height: 1.7 Meters (66.9 Inches)

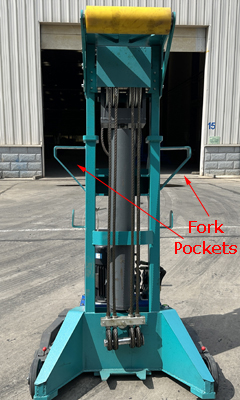

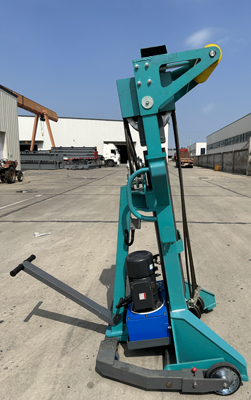

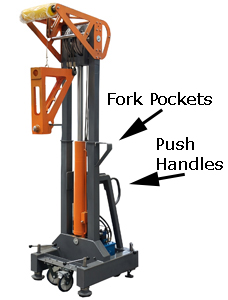

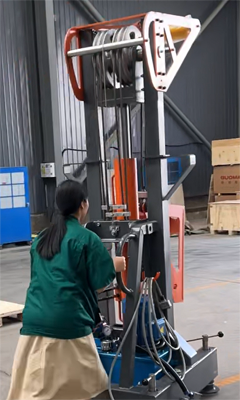

Forklift Portable and Hand Portable on Casters

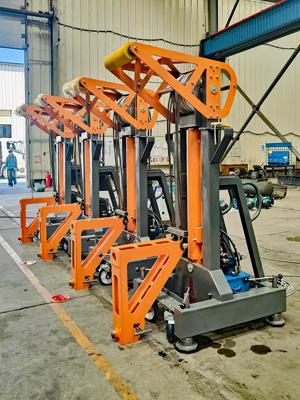

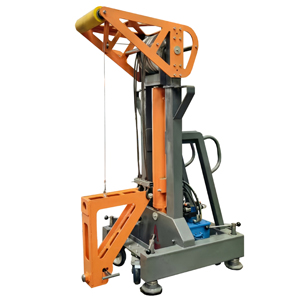

SCLL - Portable: Specification
Portable	Can be moved by forklift or by hand on rollers
Works with:	Ordinary and bulk containers	10',20', 40',45' are available Both GP and HC Heights
	Refrigerated and insulated containers
	Frame, open top container
	Livestock Containers
	Tank container
	Etc.
Electrical control system	Operation control system, quick connection group	One set
	Hydraulic power supply voltage	3 phase, 60 or 50 Hz, Volts as Required
	Control cabinet voltage	24V DC
	Operation control method	Wireless remote control: Individual or As Set
	Motor power	3KW x 4 = 12KW Total
Hydraulic lifting system	Load capacity	Max 40 Metric Ton per SET
	Oil suction filter size	20μm
	Lifting height	Max 170 CM (66.9 Inches)
	Retracted Size	14095225CM (55" x 37.4" x 88.6")
	Weight	750KG4 (340 lbs Each4)
	Wire Rope	φ16mm, total 8
