Aluminum Cleats

Aluminum Boat Cleats Bolt Down
Aluminum Dock Cleats - Aluminum Boat Cleats - Bolt Down
Bolt Down Aluminum Dock Cleats
7 1/2 to 18 Inch Length
A356 Aluminum
Optional Bronze Construction

Purchase ONLINE Marine Mooring Cleats: Steel or Aluminum

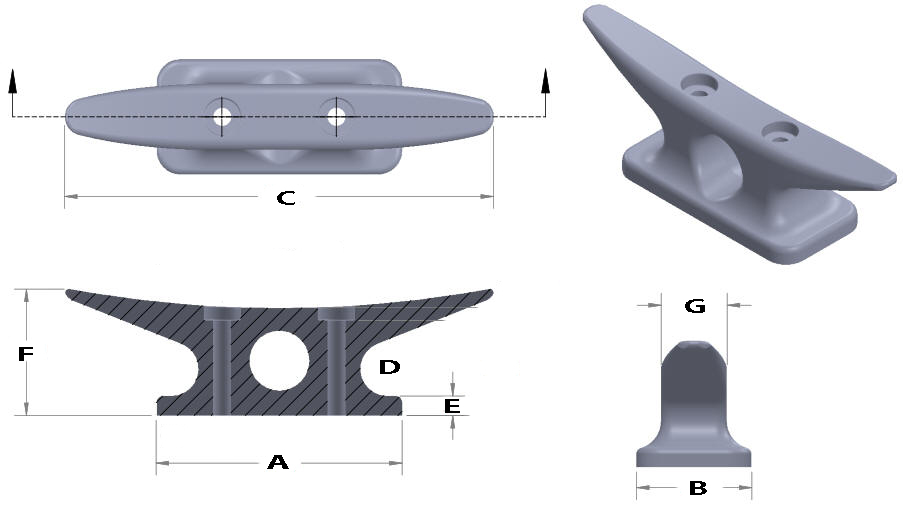

Bolt Down

A

B

C

D

E

F

G

Part

Base

Base

Overall

Clearance

Base

Overall

Cleat

Weight

Number

Length

Width

Length

Height

Thickness

Height

Thickness

Lbs.

DC-7.5-BD

4.02

1.80

7.5 Inch Cleat

.84

.37

2.33

1.15

.94

DC-8-BD

6.01

3.07

8 Inch Cleat

1.40

.45

3.23

1.30

2.00

DC-10-BD

4.06

1.75

10 Inch Cleat

1.38

.42

2.90

1.28

1.32

DC-10A-BD

7.00

4.00

10 Inch Cleat

1.77

.51

3.50

1.50

3.10

DC-12-BD

7.38

4.34

12 Inch Cleat

1.90

.82

4.40

1.75

5.70

DC-14-BD

7.56

4.25

14 Inch Cleat

2.10

.70

4.50

1.90

6.25

DC-15-BD

6.10

3.13

15 Inch Cleat

2.03

.77

4.50

2.10

6.75

DC-15A-BD

7.56

4.31

15 Inch Cleat

2.03

.77

4.50

2.10

7.50

DC-18-BD

8.13

5.25

18 Inch Cleat

1.95

.86

5.00

2.13

9.50

* A Versions Have Larger Base
