Aircraft Tie Downs - Securing Point

Model P3490-B For Concrete Imbed

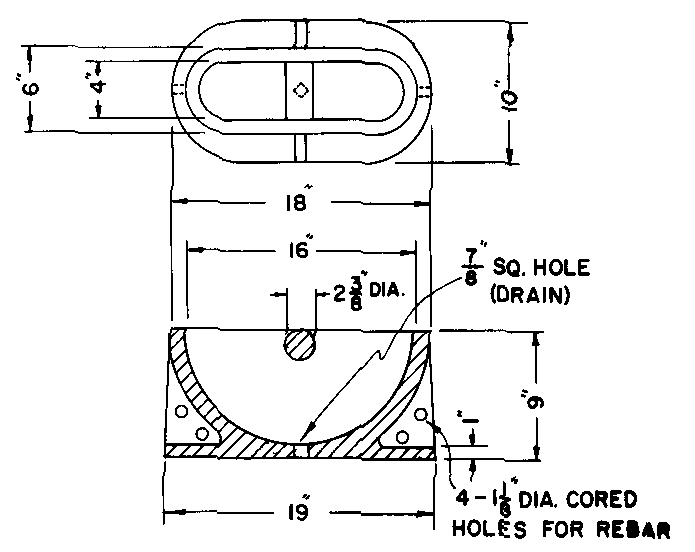

3490B Aircraft Tie Down
Ductile Cast Iron: ASTM A-536
Grade 50-55-06
200,000 lb. capacity estimate**
138 lbs. each
Finish: no paint

** Actual capacity depends on many local installation factors:
- Concrete strength
- Rebar strength (if used) and design
- Angle of pull from the fitting to the load

P3490B Aircraft Securing Point Cut Sheet

How To Install 3490 Series Tie Down In Cement


Airport Aircraft Securing and Grounding Product General Catalog

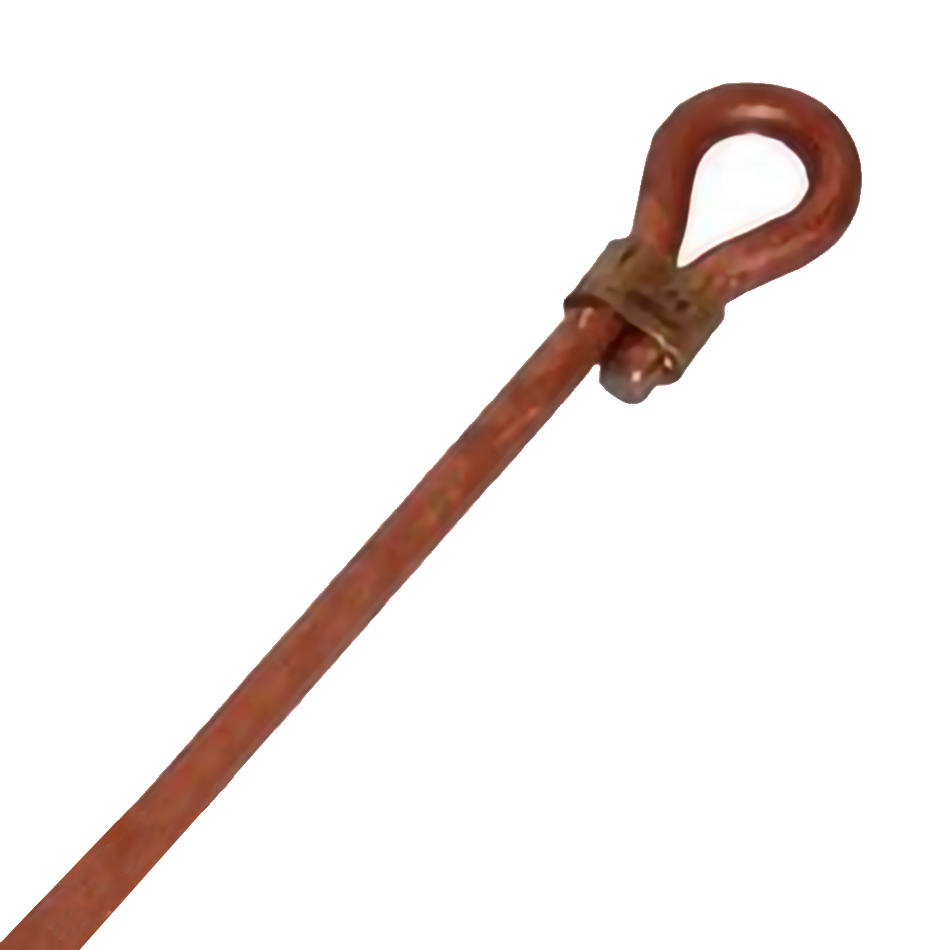

grouding rod with eye
Grounding Rods

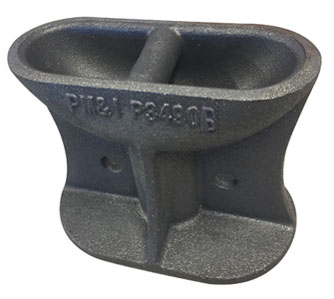

3490B Aircraft Tie Down

Other Similar Products:
Neenah 3490B
