Myte Winch Hoist 510

Myte Winch Hoist 510



Purchase ONLINE Myte Winch Hoist Portable Winch Hoist and Capstans



Portable Constant Speed Electric Winch Hoist 510 / 115VAC Power / Up to 2,000 lbs. Pull Maximum with Double Line



Features

• 1,000-lb single-line or 2,000-lb double-line lift (if you double line then speed is 1/2)

• Electromagnetic load brake for instant stopping

• Worm gear reduction for positive load holding

• Rugged construction

• Low voltage 10' pendant control

• 50% duty cycle motor

• Cable tensioner for better cable tracking



Applications

All purpose lifting or pulling

Longer duty cycle requirements

Jobs needing constant speed lifting or lowering

Special speed applications

Commercial low noise environments



Construction Features:

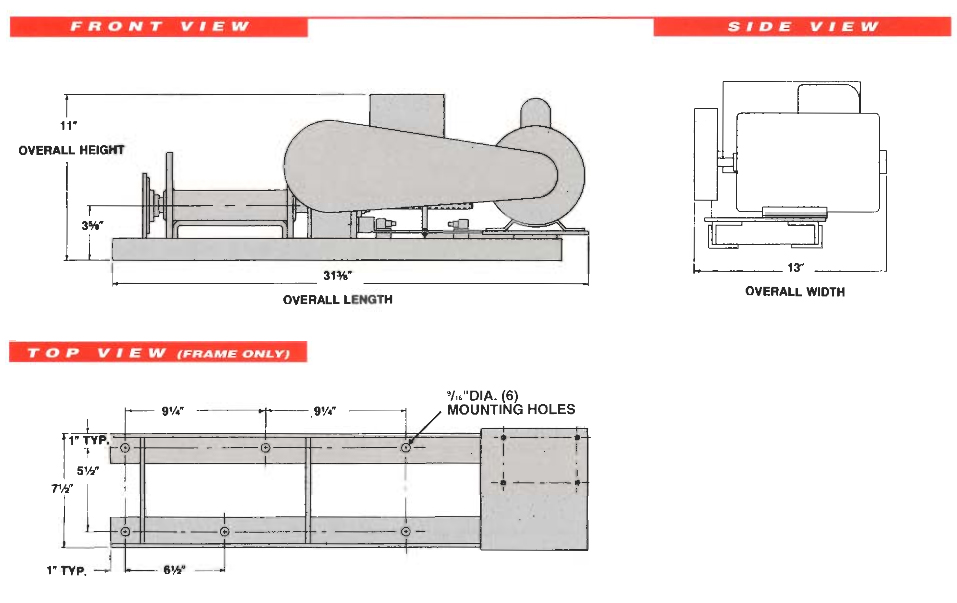

• Heavy-duty angle base drilled for six 1/2" bolts (9/16" mounting holes) with no welding required

• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath

• Hardened steel worm and forged bronze worm gear holds load in position when stopped

• Stress-proof drum shaft

• Frictionless bearings



Gear System:

• 84:1 total reduction

• 30:1 worm gear reduction

• 28:10 chain reduction from motor to worm hardened steel worm

and forged bronze worm gear hold load in position when stopped



Power:

• 115 Volt single phase 60 hz

• 15' power cord plugs into any 115 Volt AC grounded outlet

• 14 amp – No load

• 17 amp – Full load



Speeds:

RPM does not vary from no-load to full-load use.  Line speed ranges from 12 FPM 1st layer to 17 FPM third layer.



Lifting Capacity:

• 1,000 lbs – 1-2 layers of cable (39' of 1/4" cable)



Drum Storage:

• 1/8" – 1,000'

• 1/4" – 250'

• 3/16" – 450'

• 5/16" – 150'

For best results, use the minimum amount of cable required for application.

Maintain four wraps of cable on the drum at all times. Cable sold separately.

Length and size must be specified at time of order.



Cable Strength:

• Safe working load is 20% of breaking strength (5:1 Safety Factor)

• Top-quality galvanized cable available in the following breaking strengths:

1/8" – 2,000 lbs

3/16" – 4,200 lbs

1/4" – 7,000 lbs

5/16" – 9,800 lbs



Duty Cycle:

• 50% – 30 min/hr when operating at full load



Shipping Weight: 115 lbs



Factory-Installed Options (Email PM&I for Quotes)

• 230 Volt

• Alternate drums

• Chain reduction modifications

• Limit switch

• All weather protection
