S6SHR Shredder

Submersible Hydraulic Powered Pumps

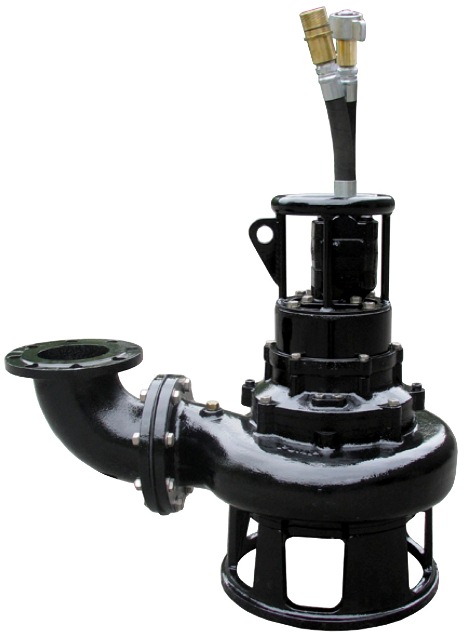

S6SHR Shredder Submersible Hydraulic Powered Pumps

Submersible Shredder Pump



Up to 1000 GPM Flow Rate

6 Inch Discharge

Up to 172 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 418 lbs. (190 kg)

Height 31" (79 cm)

Diameter 35 3/4" (91 cm)

Discharge 6" ANSI Flange

Solid Handling 3 1/2" (9 cm)

Hose Ports 1" (-16) SAE(F)

Pump Body Ductile Iron

Impeller/Screw Ductile Iron

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 30 GPM (1 14 LPM)

Operating Pressure Max. 3000 PSI (204 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
