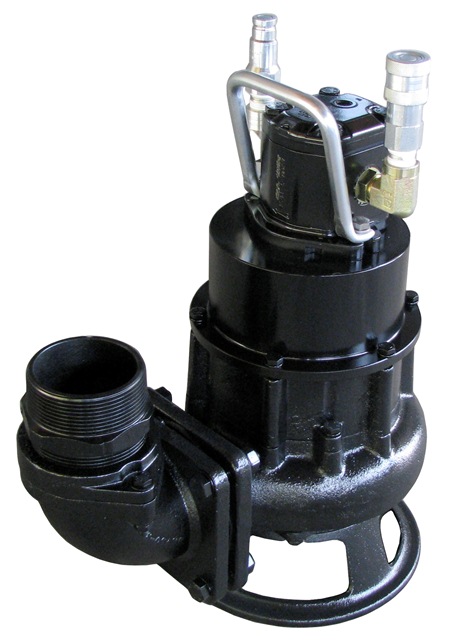

S3SHR Shredder

Submersible Hydraulic Powered Pumps

S3SHR Shredder Submersible Hydraulic Powered Pumps

Submersible Shredder Pump



Up to 360 GPM Flow Rate

3 Inch Discharge

Up to 135 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 73 Lbs. (33 kg)

Height 18.5" (47 cm)

Diameter 15 1/4" (39 cm)

Discharge 3" NPT(F)

Solid Handling 1.6" (4 cm)

Hose Ports 5/8 (-10) SAE(F)

Pump Body Ductile Iron

Impeller/Screw Ductile Iron

Elastometers Buna N

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 10 GPM (38 LPM)

Operating Pressure Max. 3000 PSI (204 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
