2AHS Sump and Utility

Submersible Electric Pumps

Sump and Utility Submersible Pump



Information Required for Electric Pump Quotes



How to Size and Specify a Pump



Pump Terminology



DISCHARGE 2" NPT vertical, adapter included.



LIQUIDTEMPERATURE 104 °F (40 °C)



PUMPBODY Cast iron FC-200.



MOTORHOUSING Aluminum alloy ADC12



OILCHAMBER Cast iron FC-200.



IMPELLER Design: 8 vane, semi-open Vortex. Material: Hytrel® thermoplastic elastomer.



SHAFT 410 series stainless steel.



HARDWARE 304 series stainless steel.



O-RINGS Nitrile rubber (NBR).



PAINT Air dry enamel, water based.



SEAL Design: double, mechanical, oil filled chamber. Material: upper part of carbon-ceramic,

lower part of silicone carbide. Stainless steel hardware.



CORDENTRY 15 ft of neoprene cord, sealed against moisture.



BEARINGS Ball, single row, permanently oil lubricated for 60,000 hours of work. Designed for radial and axial loads.



MOTOR Dry type submersible motor, 1 & 3 phase, 115 & 230 volts, 60 Hz, 3500 RPM.

For continuous duty, with thermal protector IP68 in winding, insulation class B.



STRAINER Polyvinyl chloride (PVC).



HANDLE Nylon 6.



PUMPOPERATION Available as "A" Automatic model or Manual operation (no level control).

A control panel is needed for the 3 phase pumps to operate in automatic.

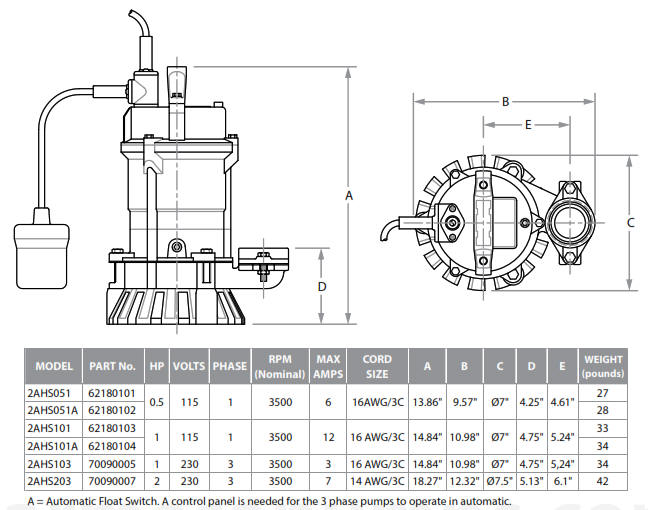

  2AHS Sump and Utility Submersible Electric Pump
