How PM&I Can Help Prevent Delays

Y Strainer

600 Y

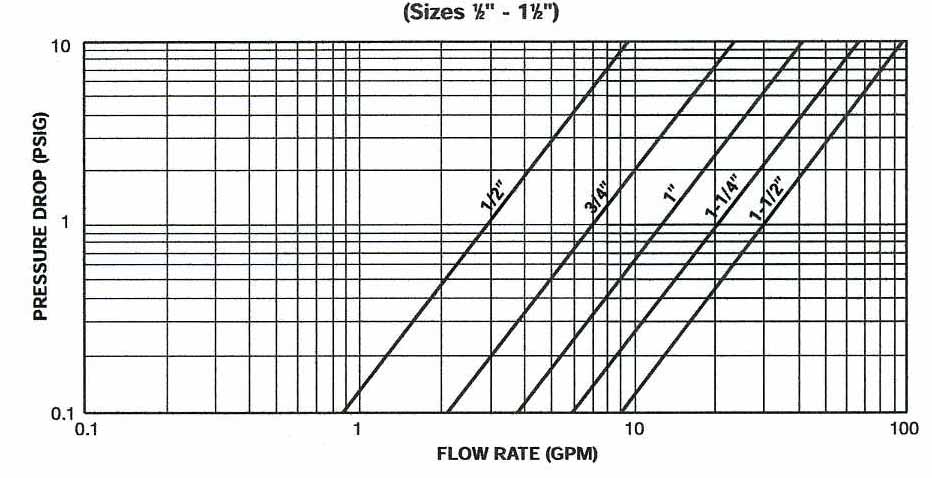

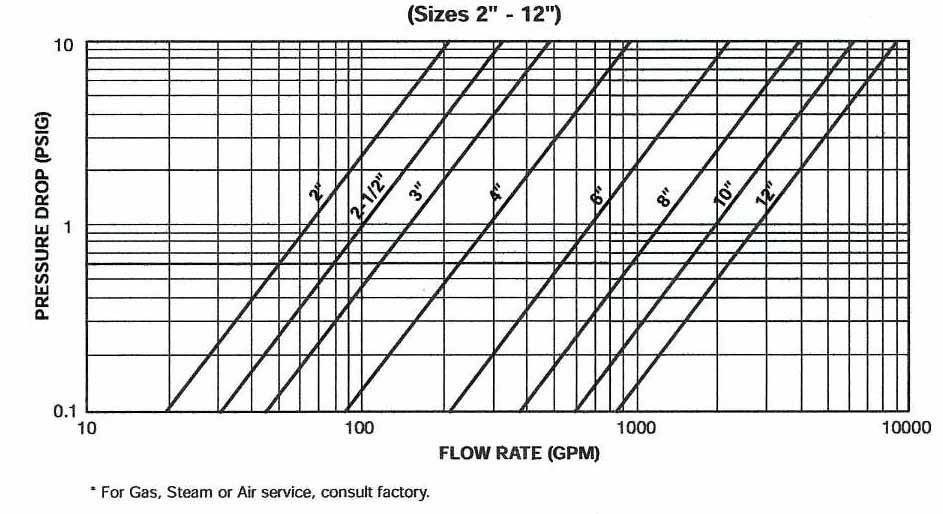

Pressure Drop vs. Flow Rate


Carbon Steel, Stainless Steel, Low Carbon Steel, Alloy 20
NPT and Socketweld
Water service, clean basket, 1/32" to 1/4" perforated screen.
Replacement Strainer Baskets
