How PM&I Can Help Prevent Delays

Aluminum Tie Down Points

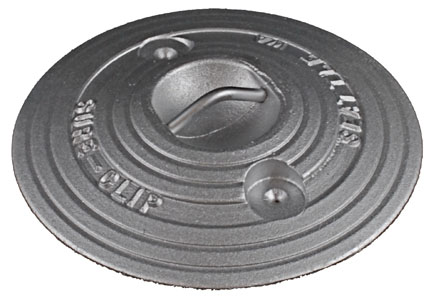

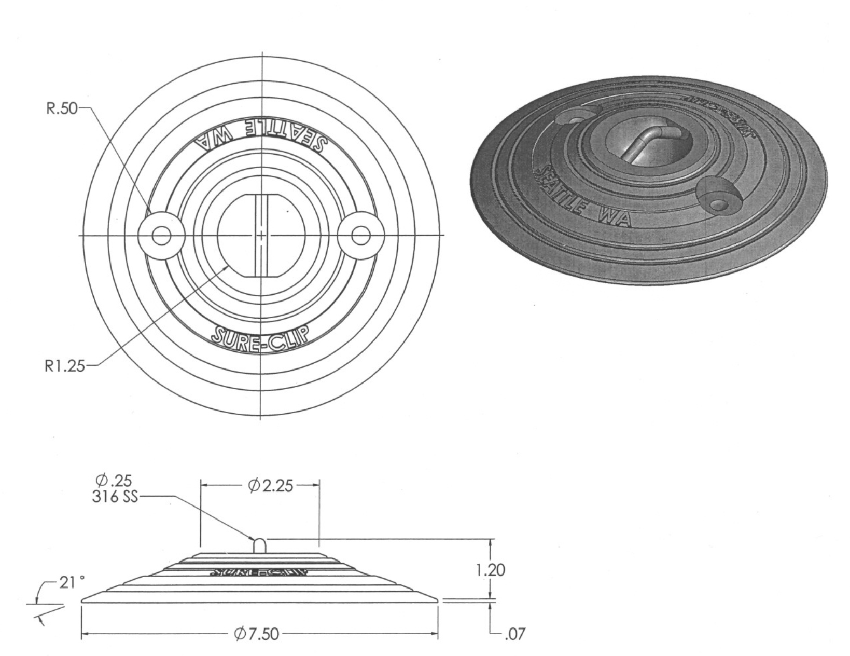

SC-01 Raised Round Aluminum Securing Point

SC-01 Raised Round Aluminum Securing Point
Part SC-01

Aluminum Casting

7.5 Inch Diameter

1/4 Inch Pin (Bent)
Breaking Load: 5530 Lbs
7.5 inch diameter and 1.2 inch height
Pull test data available.
Custom aluminum castings made upon request.
Contact PM&I for size, strength, drawing and price information
This catalog page includes:
aluminum aircraft tie down, aluminum vehicle tie down, aluminum securing point, aluminum cargo securing points, aluminum tie down point
