Aircraft Tie Downs - Helicopter Tie Downs

Model P3490-A - For Concrete Installation

3490A Aircraft Tie Down

3490-A Aircraft Tie Down

For Concrete Installation



Cast Ductile Iron: ASTM-A-536

13 lbs. each

Tested to: 23,300 lbs. with zero deflection

finish: no paint



Dims:

Side Rebar Holes: 15.9mm = 5/8 inch diameter

Bottom Stake Hole: 22mm = 7/8 inch Square



How To Install 3490 Series Tie Down In Cement



Grounding Rods

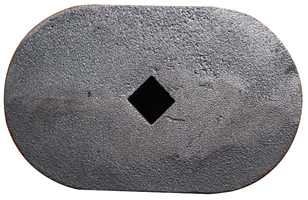

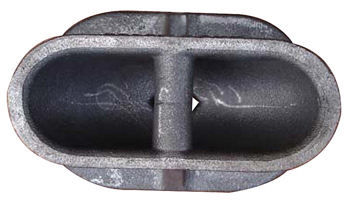

P3490A Aircraft Tie Down Top View  P3490A Aircraft Tie Down Bottom View

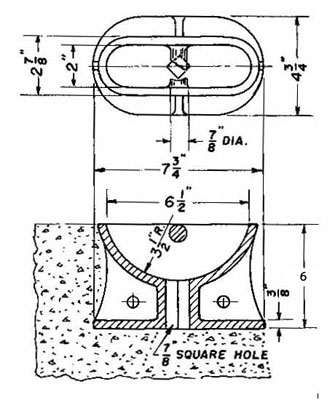

3490A Aircraft Tie Down Drawing
