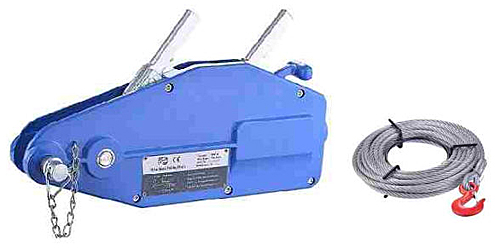

Wire Rope Puller PDSL-TW800

800 KG Rated and 1200 KG Pulling Capacity

800 KG Rated and 1200 KG Pulling Capacity

Simple structure and powerful function

Fast and easy installation

Simple to feed in or remove the wire rope

Continuous operation without snatching

Easily change from forward to reverse operation by changing the operating handle to opposite lever

Works in any position horizontal, vertical or angled

The length of the wire rope is not limited

Standard length of steel wire rope is 20 meters but custom length are available on request

Each winch is tested to 1.5 times of the rated capacity.

The jaws and connecting axle have been quenched

The modules have been electroplated

Chassis: High strength 104 aluminum alloy

Shell: Spray, standard for sand gray, color can be customized

Jaw blocks: 40Cr with suitable hardness that does not damage the wire rope

Wire rope: Hot dip galvanized 6x19W+IWR, 8.3mm, 20 meters long standard (can be customized)

Wire rope hook:

Standard American eye hook of material 35CrMo, high tensile strength.

Swivel hook or European hook can be used as required
